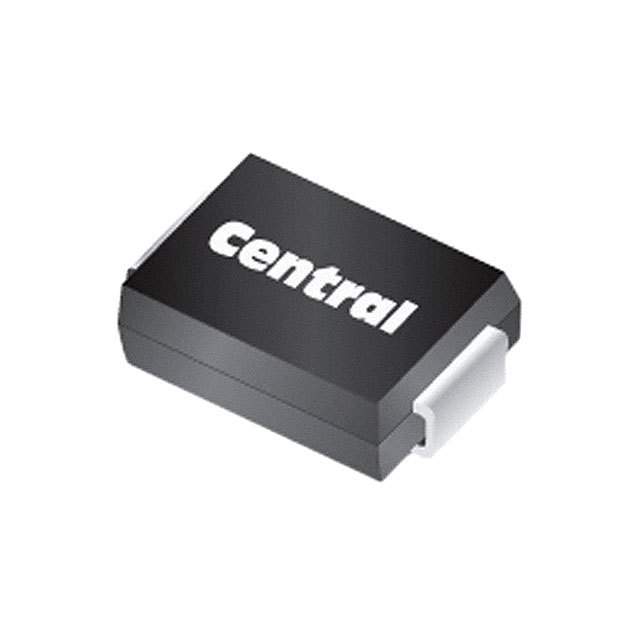

1.5SMC22CA TR13 Circuit Protection |
|
Allicdata Part #: | 1.5SMC22CATR13-TR-ND |
Manufacturer Part#: |
1.5SMC22CA TR13 |
Price: | $ 0.33 |
Product Category: | Circuit Protection |
Manufacturer: | Central Semiconductor Corp |
Short Description: | TVS DIODE 18.8V 30.6V SMC |
More Detail: | N/A |
DataSheet: | 1.5SMC22CA TR13 Datasheet/PDF |
Quantity: | 1000 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
3000 +: | $ 0.29635 |
Series: | -- |
Packaging: | Tape & Reel (TR) |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Type: | Zener |
Bidirectional Channels: | 1 |
Voltage - Reverse Standoff (Typ): | 18.8V |
Voltage - Breakdown (Min): | 20.9V |
Voltage - Clamping (Max) @ Ipp: | 30.6V |
Current - Peak Pulse (10/1000µs): | 49A |
Power - Peak Pulse: | 1500W (1.5kW) |
Power Line Protection: | No |
Applications: | General Purpose |
Capacitance @ Frequency: | -- |
Operating Temperature: | -65°C ~ 150°C (TJ) |
Mounting Type: | Surface Mount |
Package / Case: | DO-214AB, SMC |
Supplier Device Package: | SMC |
Due to market price fluctuations, if you need to purchase or consult the price. You can contact us or emial to us: sales@allicdata.com
TVS - Diodes, sometimes referred to as transient voltage suppressors, are devices that protect electrical circuits from voltage spikes. They are used in applications such as protecting automotive components from electrostatic discharge (ESD) and lightning strikes. The 1.5SMC22CA TR13 is a type of TVS diode that is popularly used to provide an extra layer of protection to circuits and components.
An 1.5SMC22CA TR13 is a unidirectional, or one-way, diode that protects both against overvoltages and overcurrents. They work by absorbing voltage spikes and providing a low resistance path for current. The diode is capable of handling a surge rating of 400 watts of electrical energy, and can withstand currents up to 18 amps.
The 1.5SMC22CA TR13 is especially useful in automotive applications, where it can help protect components from damage due to ESD, as well as being able to protect circuits from overvoltages and overcurrents. They are also useful in electric motors and power supplies. They can be used to prevent voltage spikes from damaging electrical components or sparking fires.
The 1.5SMC22CA TR13 works by clamping the voltage that is applied to it. When the voltage spikes above its normal operating voltage, the diode will absorb the energy and conduct current through it. This will provide a pathway for current to be conducted safely without causing harm to the components or the circuit. Once the voltage spikes dissipate, the diode will then open again, preventing the current from flowing. This will prevent damage or other adverse effects from occurring.
The 1.5SMC22CA TR13 is an economical and reliable solution for protecting circuits and components from voltage spikes. Its capabilities provide both reliable protection and a low ESD sensitivity for automotive applications. With its ability to handle high surge ratings and large currents, it is an ideal choice for a variety of applications where protection and reliability are needed.
The specific data is subject to PDF, and the above content is for reference
