Allicdata Part #: | 428-3798-ND |
Manufacturer Part#: |
S6E1C12C0AGN20000 |
Price: | $ 2.77 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Cypress Semiconductor Corp |
Short Description: | IC MCU 32BIT 128KB FLASH 48QFN |
More Detail: | ARM® Cortex®-M0+ FM0+ S6E1C1 Microcontroller IC 32... |
DataSheet: | S6E1C12C0AGN20000 Datasheet/PDF |
Quantity: | 218 |
1 +: | $ 2.52000 |
10 +: | $ 2.25225 |
25 +: | $ 2.02709 |
100 +: | $ 1.84685 |
Series: | FM0+ S6E1C1 |
Packaging: | Tray |
Part Status: | Active |
Core Processor: | ARM® Cortex®-M0+ |
Core Size: | 32-Bit |
Speed: | 40MHz |
Connectivity: | CSIO, I²C, LINbus, SmartCard, UART/USART |
Peripherals: | I²S, LVD, POR, PWM, WDT |
Number of I/O: | 38 |
Program Memory Size: | 128KB (128K x 8) |
Program Memory Type: | FLASH |
EEPROM Size: | -- |
RAM Size: | 16K x 8 |
Voltage - Supply (Vcc/Vdd): | 1.65 V ~ 3.6 V |
Data Converters: | A/D 8x12b |
Oscillator Type: | Internal |
Operating Temperature: | -40°C ~ 105°C (TA) |

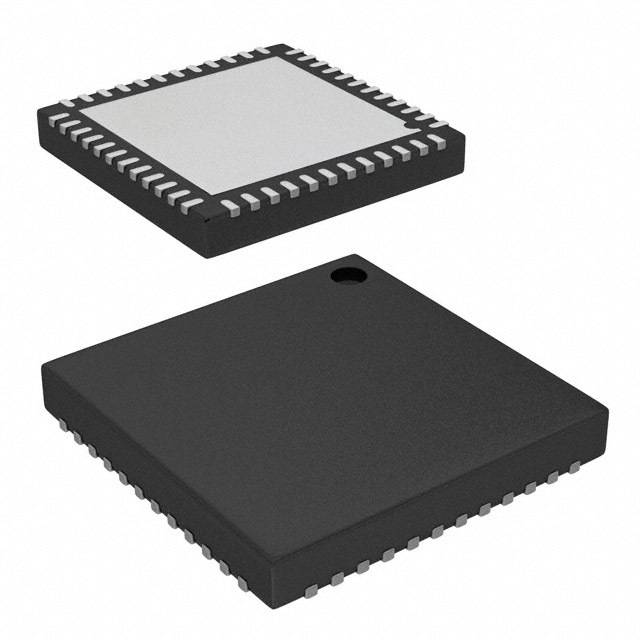

Package / Case: | 48-WFQFN Exposed Pad |
Supplier Device Package: | 48-QFN (7x7) |
Due to market price fluctuations, if you need to purchase or consult the price. You can contact us or emial to us: sales@allicdata.com
Embedded – Microcontrollers
The S6E1C12C0AGN20000 embedded microcontroller is developed by Samsung and provides a fast, flexible and reliable platform to control embedded products. The microcontroller is designed for a broad range of applications such as consumer electronics, automotive, industrial and medical. It has a 32-bit RISC core and provides memory protection, real-time clock, up to 32 general purpose I/O lines, and a wide array of peripherals. It is ideal for products requiring a robust, low power and cost-effective microcontroller solution.
Application Field
This type of microcontroller is a powerful choice for embedded system designs. It is used in a number of applications including:
- Automotive applications such as automotive electronic control unit (ECU), powertrain control and safety systems.
- Industrial applications such as HVAC, robotics and machine tools.
- Medical applications such as infusion pumps and MRI machines.
- Consumer electronics such as digital TV, DVD and personal video player (PVP) devices.
The S6E1C12C0AGN20000 provides a versatile solution for embedded designs. It is an efficient system on chip (SoC) device which integrates a 32-bit RISC processor, high performance on-chip flash memory, flexible peripheral access and a range of additional features. The integrated flash memory provides a large programming space for system designs, and the peripheral access allows the efficient control of hardware functions, such as timers, PWM and ADC converters.
Working Principle
The working principle of the S6E1C12C0AGN20000 embedded microcontroller is based on a 32-bit RISC processor. This processor works according to a set of instructions, which are programmed into the memory. These instructions are executed sequentially by the processor and it is these instructions that carry out the desired tasks. The instructions control the input/output operations, memory access, computational operations, and operations to the peripherals.
When a program is run on the microcontroller, the instructions are stored in the memory and the processor begins to execute them. The instructions are fetched and decoded and then run to completion. The processor also serves as a control unit which manages the activities of the embedded microcontroller. It performs all the tasks related to managing the system resources, such as memory access and input/output operations. The system resources are managed to ensure that the program runs correctly and efficiently.
The S6E1C12C0AGN20000 also includes a number of useful peripherals, such as timers and counters, and communications ports. These peripherals are interfaced to the processor, enabling it to perform a wide range of functions. For example, the timers can be used to generate regular interrupts which allow for precise timing of operations. The communication ports can be used for serial and parallel communications, enabling the microcontroller to easily interface to external devices.
The S6E1C12C0AGN20000 is a versatile and efficient embedded microcontroller, suitable for a variety of applications. It is an effective solution for designs which require a reliable, low power and cost effective microcontroller solution.
The specific data is subject to PDF, and the above content is for reference
