Allicdata Part #: | 1195-3146-ND |
Manufacturer Part#: |
19300480548 |
Price: | $ 51.44 |
Product Category: | Connectors, Interconnects |
Manufacturer: | HARTING |

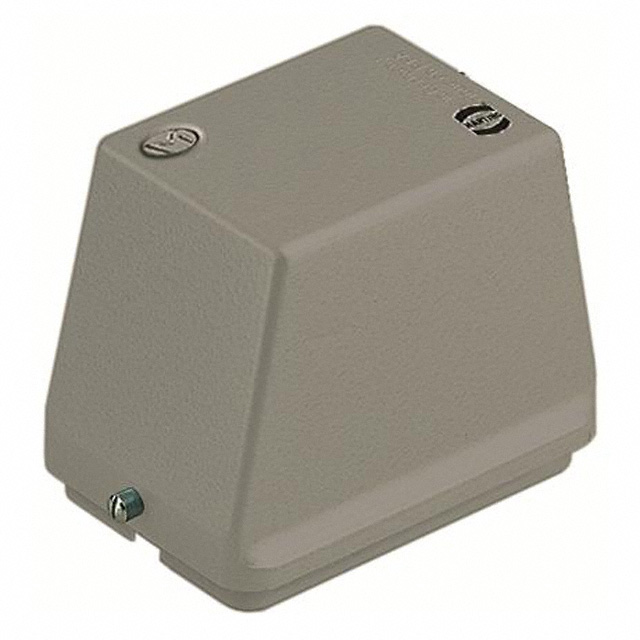

Short Description: | CONN HOOD SIDE ENTRY SZ48B M40 |
More Detail: | N/A |
DataSheet: | 19300480548 Datasheet/PDF |
Quantity: | 4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
1 +: | $ 46.75860 |
10 +: | $ 44.00930 |
25 +: | $ 42.63410 |
50 +: | $ 39.88340 |
100 +: | $ 37.68300 |
Series: | Han® B |
Packaging: | Bulk |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Connector Type: | Hood |
Style: | Side Entry |
Size: | 48B |
Lock Location: | Locking Clip (1) on Base Bottom |
Thread Size: | M40 |
Size / Dimension: | 5.197" L x 3.543" W x 4.252" H (132.00mm x 90.00mm x 108.00mm) |
Housing Color: | Gray |
Features: | -- |
Ingress Protection: | IP65 - Dust Tight, Water Resistant |
Housing Material: | Aluminum, Die Cast |
Housing Finish: | Powder Coated |
Operating Temperature: | -40°C ~ 125°C |
Due to market price fluctuations, if you need to purchase or consult the price. You can contact us or emial to us: sales@allicdata.com
Heavy Duty Connectors - Housings, Hoods, Bases
The 19300480548 connector is a robust, heavy-duty connector designed to withstand the forces of highly-technical electronics. This connector series is part of the 19000 Series family of heavy-duty electrical connectors. It is built to handle multiple signal or power connections, accommodating a variety of voltage levels and cord gauges.
19300480548 connectors are used in a wide range of applications. They can be found in the construction, automotive, IT, marine, aerospace and medical industries. The connector is also an ideal choice for challenging environments, including those with higher protection ratings and higher temperature requirements.
The 19300480548 connector offers digital and analog designs, as well as numerous mating cable options. It can be used in a variety of applications, including passenger information systems, industrial control systems, audio systems, video systems and medical systems.
The connector features internal metallization, allowing it to stand up to harsh conditions like corrosive and vibration-intense environments. However, the 19300480548 system is built to be virtually maintenance-free. Thanks to its modular components, the system can be quickly and easily installed and integrated. It also has a maximum operating temperature of up to 200 degrees Celsius.
The 19300480548 connector system consists of three main parts: the housings, hoods and bases. Housings are made of plastic and can provide a snap connection. Hoods are made of aluminum and give a snap fit connection. Bases are made of aluminum and provide mechanical mounting. Each part is designed to be durable and will remain stable during vibration and shock.
The housing acts as a static strain relief component in the system, protecting the mating assemblies from mechanical stresses. The hood is designed to protect electrical connections from dust and moisture, offering IP54 protection rating. The base provides mechanical mounting and electrical shielding, protecting against EMI/RFI interference.
The 19300480548 connector has a working principle designed to ensure a reliable and secure connection. The two parts are locked into the mechanical cavity of the housing and the hood. This creates a mechanical bond between them, providing mechanical strength and EMI protection. The mating is completed by mechanical screws or snap-in locking features.
The 19300480548 connector offers users a wide range of options and flexibility for their applications. It is flexible, reliable and designed to last in challenging environments. Thanks to its versatile design and robust components, this connector is an ideal choice for a variety of applications.
The specific data is subject to PDF, and the above content is for reference
