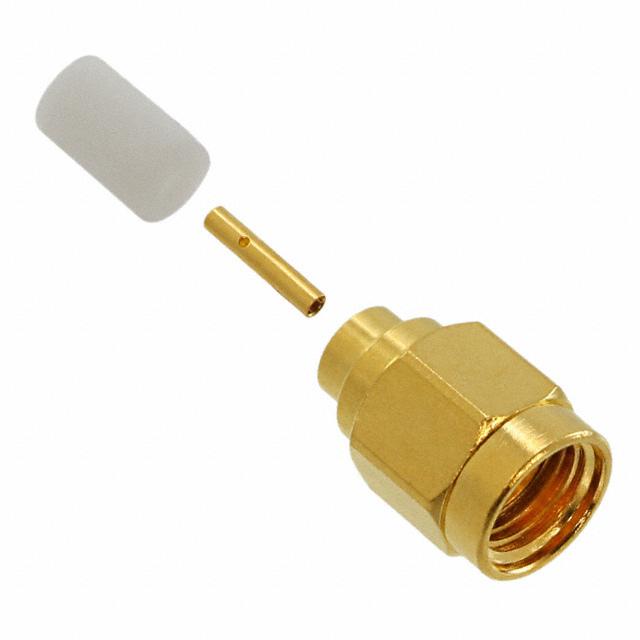

132102RP Connectors, Interconnects |
|
Allicdata Part #: | ACX2037-ND |
Manufacturer Part#: |
132102RP |
Price: | $ 4.91 |
Product Category: | Connectors, Interconnects |
Manufacturer: | Amphenol RF Division |
Short Description: | CONN RPSMA PLUG STR 50OHM SOLDER |
More Detail: | RP-SMA Connector Plug, Female Socket 50 Ohm Free H... |
DataSheet: | 132102RP Datasheet/PDF |
Quantity: | 253 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
1 +: | $ 4.46040 |
10 +: | $ 4.27455 |
25 +: | $ 3.90298 |
50 +: | $ 3.71700 |
100 +: | $ 3.53115 |
250 +: | $ 3.15945 |
500 +: | $ 2.97360 |
1000 +: | $ 2.60190 |
2500 +: | $ 2.47181 |
Series: | -- |
Packaging: | Bulk |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Connector Style: | RP-SMA |
Connector Type: | Plug, Female Socket |
Contact Termination: | Solder |
Shield Termination: | Solder |
Impedance: | 50 Ohm |
Mounting Type: | Free Hanging (In-Line) |
Mounting Feature: | -- |
Cable Group: | RG-402 (.141" Semi Rigid) |
Fastening Type: | Threaded |
Frequency - Max: | 18GHz |
Number of Ports: | 1 |
Features: | -- |
Housing Color: | Gold |
Ingress Protection: | -- |
Includes: | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
Body Material: | Brass |
Body Finish: | Gold |
Center Contact Plating: | Gold |
Dielectric Material: | Polytetrafluoroethylene (PTFE) |
Operating Temperature: | -65°C ~ 165°C |
Center Contact Material: | Beryllium Copper |
Voltage Rating: | 500V |
Mating Cycles: | 500 |
Insertion Loss: | -- |
Due to market price fluctuations, if you need to purchase or consult the price. You can contact us or emial to us: sales@allicdata.com
Coaxial Connectors (RF), commonly referred to as RF connectors, are types of electrical connectors used for high-frequency signals in the radio frequency (RF) range. These are usually fixed to coaxial cables, which are then connected to electronic equipment. The main purpose of these RF connectors is to maintain a low-loss electrical connection, and typical applications include antenna lines, broadcast systems, test equipment, and other devices where signals may need to be transferred at radio and microwave frequencies.
Among the different types of RF connectors, the SMA and the RP-SMA (Reverse Polarity SMA) are the most popular. The RP-SMA specifically refers to the reverse polarity of the SMA by changing one contact structure. Its advantage lies in the fact that it is more durable and secure than the SMA type connector, making it preferred for devices and systems which are subject to shock or vibration.
The particular type of RP-SMA discussed in this article is the 132102RF, which is suitable for applications between DC to 6GHz and is able to handle high power up to 4W. It consists of three components, which are the nut, ferrule, and the center pin. The nut permits the connector to be held firmly in place while the ferrule ensures that the center pin is protected from any damage. The center pin provides an electrical connection and includes a spring to create a tight connection.
The working principle of a 132102RF is that the nut and ferrule keep the center pin in place while the spring in the center pin helps to ensure a tight connection with very low contact loss. When two connectors are linked together, the force of the spring helps to provide a good mechanical and electrical connection. This prevents any signal loss or interference, which is essential in applications like antenna lines where the signal has to travel a long distance.
The 132102RF has a wide variety of applications where high frequency and power signals need to be transmitted. Some of the most common applications of these connectors include radio communication systems, digital video broadcasting networks, satellite communications systems, instrumentation systems, and broadcast/studio systems. It is also widely used in the medical and industrial fields, as many devices such as thermometers, air conditioning systems, and other instruments require the use of a reliable and low-loss connection.
Due to their durability and dependability, the 132102RF is a popular choice for easy and quick deployment in any application. With its low contact loss and reliable connection, it is the go-to connector for any RF application. It is also well suited for any environment, making it ideal for applications such as military-grade systems or for use in harsh or extreme conditions.
