EFM8BB10F8G-A-SOIC16

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

The EFM8BB10F8G-A-SOIC16, part of the Busy Bee family of MCUs, is a multipurpose line of 8-bit microcontrollers with a comprehensive feature set in small packages. These devices offer high-value by integrating advanced analog and communication peripherals into small packages, making them ideal for space-constrained applications. With an efficient 8051 core, enhanced pulse-width modulation, and precision analog, the EFM8BB10F8G-A-SOIC16 family is also optimal for embedded applications.

EFM8BB10F8G-A-SOIC16 applications include the following:

    1. Motor control

    2. Consumer electronics

    3. Sensor controllers

    4. Medical equipment

    5. Lighting systems

    6. I/O port expander

2. KEY FEATURES

    1. Pipelined 8-bit C8051 core with 25 MHz maximum operating frequency

    2. Up to 18 multifunction, 5 V tolerant I/O pins

    3. One 12-bit Analog to Digital converter (ADC)

    4. Two low-current analog comparators

    5. Integrated temperature sensor

    6. 3-channel enhanced PWM / PCA

    7. Four 16-bit timers

    8. UART, SPI and SMBus/I2C

    9. Priority crossbar for flexible pin mapping

3. Block Diagram

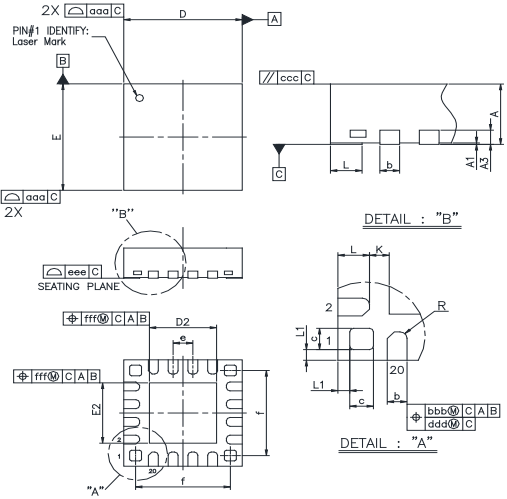

4. Package Dimensions
