| Allicdata Part #: | IRFP064NPBF-ND |
| Manufacturer Part#: |
IRFP064NPBF |
| Price: | $ 2.18 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Infineon Technologies |
| Short Description: | MOSFET N-CH 55V 110A TO-247ACN-Channel 55V 110A (T... |
| More Detail: | N/A |
| DataSheet: |  IRFP064NPBF Datasheet/PDF |
| Quantity: | 21971 |
| 1 +: | $ 2.18000 |
| 10 +: | $ 2.11460 |
| 100 +: | $ 2.07100 |
| 1000 +: | $ 2.02740 |
| 10000 +: | $ 1.96200 |
| Series: | HEXFET® |
| Packaging: | Tube |
| Part Status: | Active |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 55V |
| Current - Continuous Drain (Id) @ 25°C: | 110A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 8 mOhm @ 59A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Power - Max: | -- |
| Gate Charge (Qg) (Max) @ Vgs: | 170nC @ 10V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 4000pF @ 25V |
| FET Feature: | -- |
| Power Dissipation (Max): | 200W (Tc) |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | TO-247AC |
| Package / Case: | TO-247-3 |
| Base Part Number: | IRFP064 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
International Rectifier's fifth-generation HEXFETs use advanced processing techniques to achieve extremely low on-resistance per silicon area. This advantage, combined with the well-known fast switching speed and rugged device design of HEXFET power MOSFETs, provides designers with an extremely efficient and reliable device that can be used in a wide range of applications The TO-247 package is the preferred choice for commercial-industrial applications where higher power levels make the use of TO-220 devices impossible. The TO-247 is similar to but superior to the earlier TO-218 package because it has separate mounting holes.
2. Feature
1. Advanced technology
2. Ultra-low on-resistance
3. Dynamic dv/dt rating
4. 175°C operating temperature
5. Quick switching
6. Fully Avalanche Rated
7. Lead-free

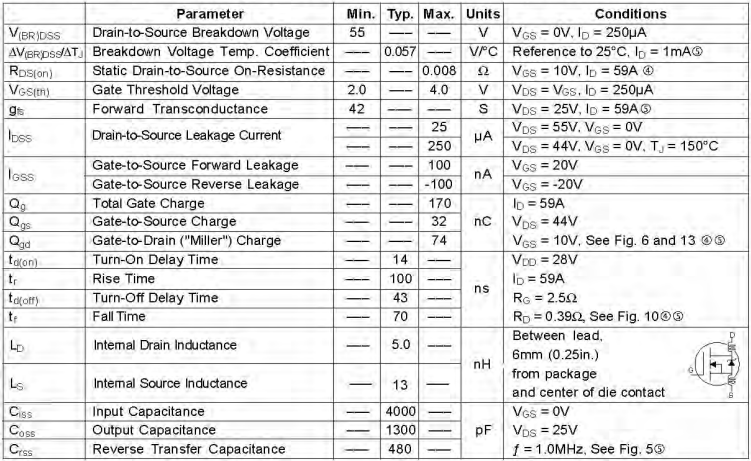

3. Electrical Characteristics
