MC7805BTG

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Describe

These regulators are designed with monolithic integrated circuits As a fixed voltage regulator suitable for various applications Include local and card regulations. These regulators use internal Current limiting, thermal shutdown and safety zone compensation. with Enough heat dissipation, they can provide more than 1.0 A. Although it is mainly designed as a fixed voltage regulator, these The device can be used with external components to obtain adjustable Voltage and current.

2. Feature

    1. The output current exceeds 1.0 A

    2. No external components required

    3. Internal thermal overload protection

    4. Internal short-circuit current limit

    5. Output transistor safe area compensation

    6. Provide 1.5%, 2% and 4% tolerance output voltage

    7. Provide surface mount D2PAK-3, DPAK-3 and standard 3-lead transistor packages

    8. NCV prefix for automotive and other applications that require unique site and control change requirements; AEC-Q100 certification and PPAP capability

    9. These are lead-free devices

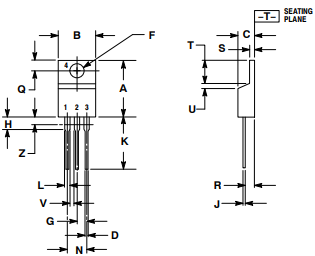

3. Package dimensions
