218-4LPSTR Switches |
|
| Allicdata Part #: | CT3110TR-ND |
| Manufacturer Part#: |
218-4LPSTR |
| Price: | $ 0.00 |
| Product Category: | Switches |
| Manufacturer: | CTS Electrocomponents |
| Short Description: | SWITCH SLIDE DIP SPST 25MA 24VDip Switch SPST 4 Po... |
| More Detail: | N/A |
| DataSheet: |  218-4LPSTR Datasheet/PDF |
| Quantity: | 22000 |
| Series: | 218 |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Circuit: | SPST |
| Number of Positions: | 4 |
| Current Rating: | 25mA |
| Voltage Rating: | 24VDC |
| Actuator Type: | Slide (Standard) |
| Actuator Level: | Flush, Recessed |
| Contact Material: | Beryllium Copper |
| Contact Finish: | Gold |
| Height Above Board: | 0.104" (2.65mm) |
| Mounting Type: | Surface Mount |
| Termination Style: | Gull Wing |
| Pitch: | 0.050" (1.27mm), Half |
| Washable: | Yes |
| Features: | Epoxy Sealed Terminals, Tape Seal |
| Operating Temperature: | -55°C ~ 85°C |
| Body Material: | -- |
| Length: | 0.246" (6.25mm) |
| Mechanical Life: | -- |
| Electrical Life: | 1,000 Cycles |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
The positive brake separated from the contactor causes the contactor to not deflect during starting. The unique compact design allows for mini size applications. The optional sealing structure is optimized for circuit board cleaning during soldering. It makes it ideal for any server, security and HVAC system
2. Feature
1. Removable tape seal to withstand IR gas phase or Wave soldering temperature and circuit board cleaning
2. Gull wing and "J" bent terminal configuration
3. Thin actuator prevents accidental activation
4. Provide SPST configuration
5. 0.6 mm/.024 inch actuator stroke
6. Optional top tape seal for board spray washing

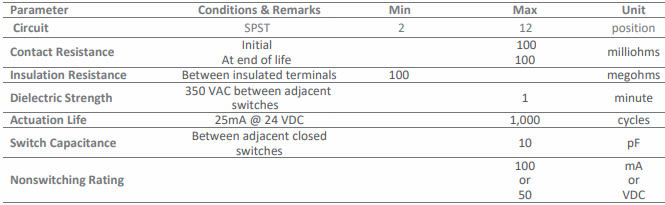

3. Electrical Specifications
