6-1462037-7 Relays |
|
Allicdata Part #: | PB1091DKR-ND |
Manufacturer Part#: |
6-1462037-7 |
Price: | $ 0.00 |
Product Category: | Relays |
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Short Description: | RELAY TELECOM DPDT 2A 12VTelecom Relay DPDT (2 For... |
More Detail: | N/A |
DataSheet: | 6-1462037-7 Datasheet/PDF |
Quantity: | 1000 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Series: | IM, AXICOM |
Packaging: | Digi-Reel® |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Relay Type: | Telecom |
Coil Type: | Latching, Single Coil |
Coil Current: | 8.3mA |
Coil Voltage: | 12VDC |
Contact Form: | DPDT (2 Form C) |
Contact Rating (Current): | 2A |
Switching Voltage: | 250VAC, 220VDC - Max |
Turn On Voltage (Max): | 9 VDC |
Turn Off Voltage (Min): | -- |
Operate Time: | 3ms |
Release Time: | 3ms |
Features: | Sealed - Hermetically |
Mounting Type: | Surface Mount |
Termination Style: | Gull Wing |
Operating Temperature: | -40°C ~ 85°C |
Contact Material: | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
Coil Power: | 100 mW |
Coil Resistance: | 1.44 kOhms |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Feature
1. Slim line 10x6 mm, thin type 5.65 mm and minimum. Circuit board space 60mm2
2. Switching current 2/5A, switching power 60W/62.5VA, switching voltage 220VDC/250VAC
3. Low coil power consumption, standard 140mW, high sensitivity 100mW, ultra-high sensitivity 50mW, bistable 100mW
4. High dielectric and surge capability, up to 2500Vrms between open contacts, up to 2500Vrms between coils and contacts
5. High mechanical shock resistance up to 50g
2. Application
1. Telecommunications
2. Access and transmission equipment
3. Optical Network Terminal
4. Modem
5. Office and commercial equipment
6. Consumer Electronics
7. Measuring and testing equipment
8. Industrial Control
9. Medical equipment
10. HVAC

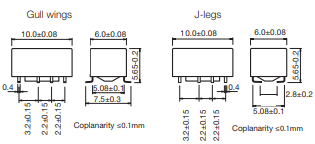

3. Package overview
