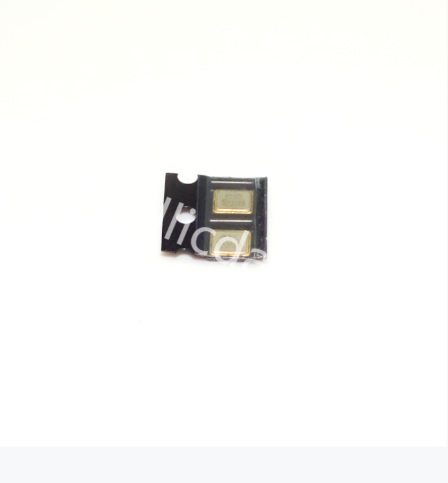

ABM8G-12.000MHZ-4Y-T3 Crystals, Oscillators, Resonators |
|
| Allicdata Part #: | 535-10901-2-ND |
| Manufacturer Part#: |
ABM8G-12.000MHZ-4Y-T3 |
| Price: | $ 0.00 |
| Product Category: | Crystals, Oscillators, Resonators |
| Manufacturer: | Abracon LLC |
| Short Description: | CRYSTAL 12.0000MHZ 10PF SMD12MHz ±30ppm Crystal 10... |
| More Detail: | N/A |
| DataSheet: |  ABM8G-12.000MHZ-4Y-T3 Datasheet/PDF |
| Quantity: | 66000 |
Specifications
| Series: | ABM8G |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Type: | MHz Crystal |
| Frequency: | 12MHz |
| Frequency Stability: | ±30ppm |
| Frequency Tolerance: | ±30ppm |
| Load Capacitance: | 10pF |
| ESR (Equivalent Series Resistance): | 120 Ohms |
| Operating Mode: | Fundamental |
| Operating Temperature: | -10°C ~ 60°C |
| Ratings: | -- |
| Mounting Type: | Surface Mount |
| Package / Case: | 4-SMD, No Lead |
| Size / Dimension: | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
Description
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. FEATURES
1. Low in height; suitable for thin equipment
2. Glass sealed package assures high reliability and high temperature operation
3. Tight tolerance and stability available
4. IR reflow capable
5. Low cost version of ABM8 crystal
2. APPLICATIONS
1. High density applications.
2. Modems, communication and test equipment.
3. PMCIA, wireless applications

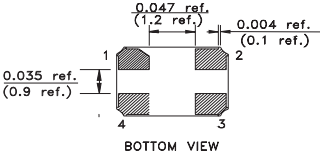

3. OUTLINE DRAWING
4. TAPE & REEL
