LTST-C191KRKT Optoelectronics |
|
| Allicdata Part #: | 160-1447-2-ND |
| Manufacturer Part#: |
LTST-C191KRKT |
| Price: | $ 0.10 |
| Product Category: | Optoelectronics |
| Manufacturer: | Lite-On Inc. |
| Short Description: | LED RED CLEAR 0603 SMDRed 631nm LED Indication - D... |
| More Detail: | N/A |
| DataSheet: |  LTST-C191KRKT Datasheet/PDF |
| Quantity: | 10390 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| 1 +: | $ 0.10000 |
| 10 +: | $ 0.09700 |
| 100 +: | $ 0.09500 |
| 1000 +: | $ 0.09300 |
| 10000 +: | $ 0.09000 |
| Series: | -- |
| Packaging: | Tape & Reel (TR) |
| RoHS Status: | ROHS3 Compliant |
| Lead Free Status / RoHS Status: | -- |
| Part Status: | Active |
| Moisture Sensitivity Level (MSL): | -- |
| Color: | Red |
| Lens Color: | Colorless |
| Configuration: | Standard |
| Lens Transparency: | Clear |
| Millicandela Rating: | 54mcd |

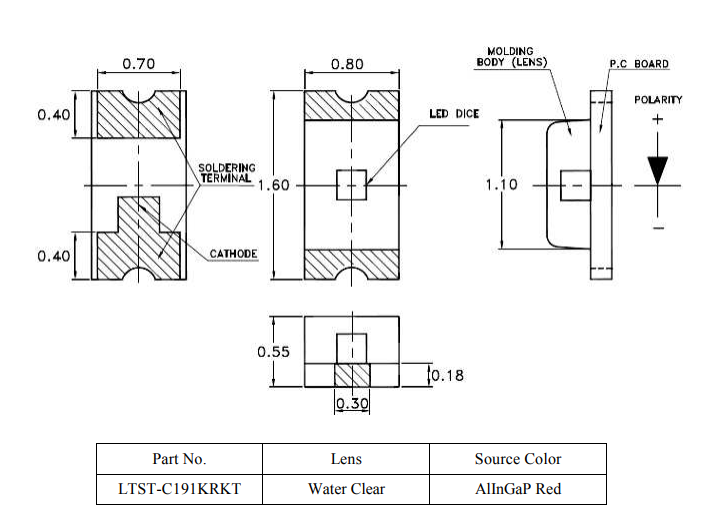

| Lens Style/Size: | Rectangle with Flat Top, 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ): | 2V |
| Current - Test: | 20mA |
| Viewing Angle: | 130° |
| Mounting Type: | Surface Mount |
| Wavelength - Dominant: | 631nm |
| Wavelength - Peak: | 639nm |
| Features: | -- |
| Package / Case: | 0603 (1608 Metric) |
| Size / Dimension: | 1.60mm L x 0.80mm W |
| Supplier Device Package: | -- |
| Height (Max): | 0.65mm |
| Base Part Number: | -- |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Features
1. Meet ROHS, Green Product.
2. Super Thin (0.55H mm) Chip LED.
3. Ultra Bright AlInGaP Chip LED.

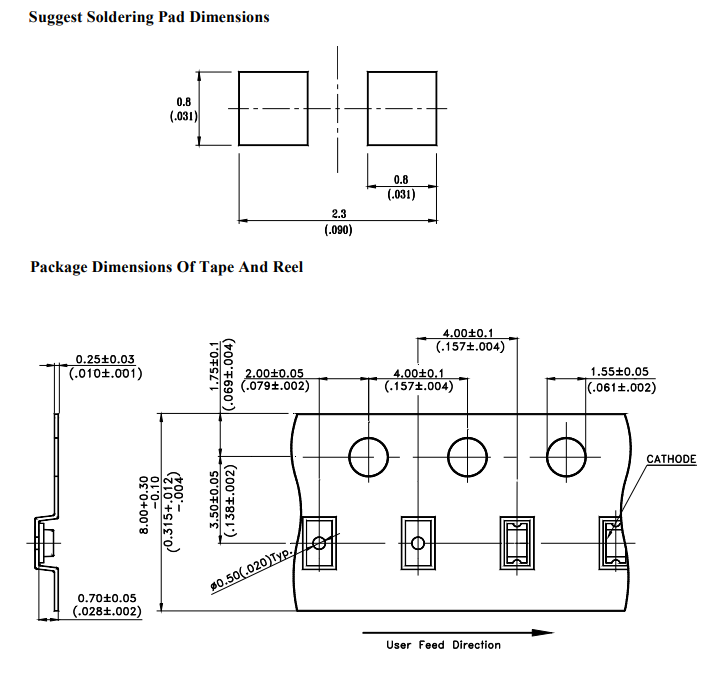

4. Package In 8mm Tape On 13" Diameter Reels.
5. EIA STD package.
6. I.C. compatible.
7. Compatible With Automatic Placement Equipment.
8. Compatible With Infrared Reflow Solder Process.
2. Drive Method
An LED is a current-operated device. In order to ensure intensity uniformity on multiple LEDs connected in parallel in an application, it is recommended that a current limiting resistor be incorporated in the drive circuit, in series with each LED as shown in Circuit A below.
3. ESD (Electrostatic Discharge) Static Electricity or power surge will damage the LED.
Suggestions to prevent ESD damage:
1. Use of a conductive wrist band or anti-electrostatic glove when handling these LEDs.
2. All devices, equipment, and machinery must be properly grounded.
3. Work tables, storage racks, etc. should be properly grounded.
4. Use ion blower to neutralize the static charge which might have built up on surface of the LED’s plastic lens as a result of friction between LEDs during storage and handling.
