MC33063ADR Allicdata Electronics

MC33063ADR Integrated Circuits (ICs)

Allicdata Part #:

296-17763-2-ND

Manufacturer Part#:

MC33063ADR

Price: $ 0.00
Product Category:

Integrated Circuits (ICs)

Manufacturer: Texas Instruments
Short Description: IC REG BUCK BOOST INV ADJ 8SOICBuck, Boost Switchi...
More Detail: N/A
DataSheet: MC33063ADR datasheetMC33063ADR Datasheet/PDF
Quantity: 2675
Stock 2675Can Ship Immediately
Specifications
Series: MC33063A
Packaging: Tape & Reel (TR)
Part Status: Active
Function: Step-Up, Step-Down
Output Configuration: Positive or Negative
Topology: Buck, Boost
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 3V
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.25V
Voltage - Output (Max): 40V (Switch)
Current - Output: 1.5A (Switch)
Frequency - Switching: 100kHz
Synchronous Rectifier: No
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: MC33063ADR
Description

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com


1. Description

The MC33063ADR devices are easy-to use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature- compensated reference, a comparator, an oscillator a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies. The MC33063A device is characterized for operation from –40°C to 85°C, while the MC34063A device is characterized for operation from 0°C to 70°C.

2. Features

    1. Wide Input Voltage Range: 3 V to 40 V

    2. High Output Switch Current: Up to 1.5 A

    3. Adjustable Output Voltage

    4. Oscillator Frequency Up to 100 kHz

    5. Precision Internal Reference: 2%

    6. Short-Circuit Current Limiting

    7. Low Standby Current

3. Applications

    1. Blood Gas Analyzers: Portable

    2. Cable Solutions

    3. HMIs (Human Machine Interfaces)

    4. Telecommunications

    5. Portable Devices

    6. Consumer & Computing

    7. Test & Measurement

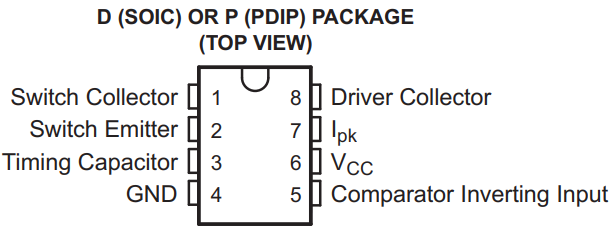

4. Pin Configuration

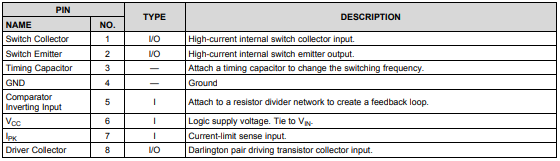

5. Pin Functions

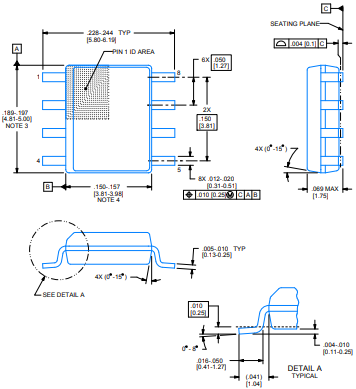

6. Package outline
