MLF2012A3R3KTD25 Inductors, Coils, Chokes |
|
| Allicdata Part #: | 445-173935-2-ND |
| Manufacturer Part#: |
MLF2012A3R3KTD25 |
| Price: | $ 0.00 |
| Product Category: | Inductors, Coils, Chokes |
| Manufacturer: | TDK Corporation |
| Short Description: | FIXED IND 3.3UH 50MA 600 MOHM3.3µH Shielded Multil... |
| More Detail: | N/A |
| DataSheet: |  MLF2012A3R3KTD25 Datasheet/PDF |
| Quantity: | 1000 |
Specifications
| Series: | MLF |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Number of Coils: | -- |
| Type: | Multilayer |
| Inductance - Connected In Parallel: | -- |
| Material - Core: | Ferrite |
| Inductance: | 3.3µH |
| Current Rating - Parallel: | -- |
| Tolerance: | ±10% |
| Current Saturation - Parallel: | -- |
| Current Rating: | 50mA |
| DC Resistance (DCR) - Parallel: | -- |
| Current - Saturation: | -- |
| Shielding: | Shielded |
| DC Resistance (DCR): | 600 mOhm Max |
| Q @ Freq: | 45 @ 10MHz |
| Frequency - Self Resonant: | 60MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -55°C ~ 125°C |
| Height: | 1.45mm |
| Inductance Frequency - Test: | 10MHz |
| Mounting Type: | Surface Mount |
| Features: | -- |
| Package / Case: | 0805 (2012 Metric) |
| Supplier Device Package: | 0805 (2012 Metric) |
| Size / Dimension: | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max): | 0.057" (1.45mm) |
Description
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. FEATURES
1. The lineup includes a wide inductance range.
2. Highly reliable monolithic structure with multilayer integration.
3. Operating temperature range: –55 to +125°C
2. APPLICATION
1. Automotive equipment, smart phones, tablet terminals, tuners, LCD-TVs, PDP-TVs, audio equipment, computers, signal processing for modules etc.

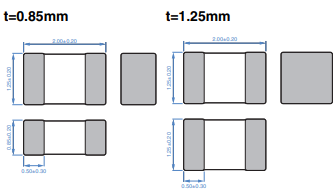

3. SHAPE & DIMENSIONS
4. PACKAGING STYLE
