2016L050MR Circuit Protection |
|
| Allicdata Part #: | F4070TR-ND |
| Manufacturer Part#: |
2016L050MR |
| Price: | $ 0.00 |
| Product Category: | Circuit Protection |
| Manufacturer: | Littelfuse Inc. |
| Short Description: | PTC RESET FUSE 60V 550MA 2016Polymeric PTC Resetta... |
| More Detail: | N/A |
| DataSheet: |  2016L050MR Datasheet/PDF |
| Quantity: | 13000 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Series: | POLY-FUSE®, 2016L |
| Packaging: | Tape & Reel (TR) |
| Lead Free Status / RoHS Status: | -- |
| RoHS Status: | -- |
| Part Status: | Active |
| Moisture Sensitivity Level (MSL): | -- |
| Type: | Polymeric |
| Voltage - Max: | 60V |
| Current - Max: | 20A |
| Current - Hold (Ih) (Max): | 550mA |
| Current - Trip (It): | 1.1A |
| Resistance - 25°C (Typ): | -- |
| Time to Trip: | 5s |
| Resistance - Initial (Ri) (Min): | 200 mOhms |
| Resistance - Post Trip (R1) (Max): | 1 Ohms |
| Operating Temperature: | -40°C ~ 85°C |
| Ratings: | -- |
| Mounting Type: | Surface Mount |
| Package / Case: | 2016 (5041 Metric), Concave |
| Size / Dimension: | 0.200" L x 0.160" W (5.08mm x 4.07mm) |
| Height - Seated (Max): | -- |
| Thickness (Max): | 0.079" (2.00mm) |
| Lead Spacing: | -- |
| Approvals: | cURus, TUV |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
The 2016L Series PTC provides surface mount overcurrent protection for low voltage (≤60V) applications where resettable protection is desired.
2. Features
1. RoHS compliant, lead-free and halogen-free
2. Fast response to fault currents
3. High voltage
4. Low-profile
3. Applications
1. IEEE 1394 port protection
2. Powered ethernet port protection (IEEE 802.3 af)
3. Automotive electronic control module protection
4. Low voltage telecom equipment protection

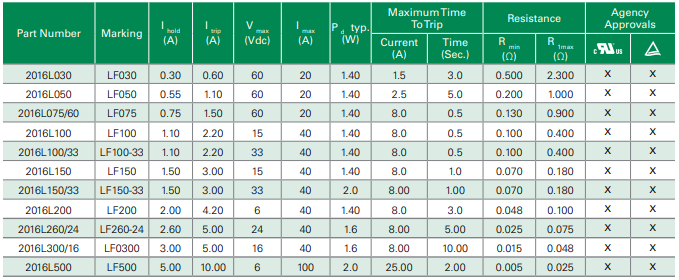

4. Electrical Characteristics
5. Dimensions
6. Tape and Reel Diagram
