Allicdata Part #: | 296-36547-5-ND |
Manufacturer Part#: |
ADS1291IPBS |
Price: | $ 16.42 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Texas Instruments |
Short Description: | IC AFE 24BIT 8KSPS 1CH 32TQFP1 Channel AFE 24 Bit ... |
More Detail: | N/A |
DataSheet: | ADS1291IPBS Datasheet/PDF |
Quantity: | 250 |
1 +: | $ 16.42000 |
Series: | ADS1291 |
Packaging: | Tray |
Part Status: | Active |
Number of Bits: | 24 |
Input Impedance: | -- |
Number of Channels: | 1 |
Measurement Error: | -- |
Power (Watts): | 495µW |
Voltage - I/O High: | -- |
Voltage - I/O Low: | -- |
Voltage - Supply, Analog: | 2.7 V ~ 5.25 V |
Voltage - Supply, Digital: | 1.7 V ~ 3.6 V |
Current - Supply: | -- |
Package / Case: | 32-TQFP |
Voltage - Supply: | -- |
Supplier Device Package: | 32-TQFP (5x5) |
Meter Type: | -- |
Base Part Number: | ADS1291 |
Operating Temperature: | - 40 C~+ 85 C |
Mounting Type: | Surface Mount |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
The ADS1291IPBS, ADS1292, and ADS1292R are multichannel, simultaneous sampling, 24-bit, deltasigma (ΔΣ) analog-to-digital converters (ADCs) with built-in programmable gain amplifiers (PGAs), internal reference, and onboard oscillators. The ADS1291IPBS, ADS1292, and ADS1292R contain all the functions typically required in portable, low-power medical electrocardiography (ECG), sports, and fitness applications. The ADS1291IPS, ADS1292, and ADS1292R feature high levels of integration and superior performance to create scalable medical instrumentation systems with significantly reduced size, power consumption, and overall cost. Each channel of the ADS1291IPBS, ADS1292, and ADS1292R has a flexible input multiplexer that can be independently connected to internally generated signals for test, temperature, and lead-off detection. Additionally, any input channel configuration can be selected to derive the right leg drive (RLD) output signal. The ADS1291IPBS, ADS1292, and ADS1292R operate at data rates up to 8 kSPS. On/off detection can be implemented inside the device using an excitation current sink or source inside the device. The ADS1292R version includes fully integrated respiration impedance measurement. The devices are available in 5mm × 5mm, 32-lead Thin Quad Flatpack (TQFP) and 4mm × 4mm, 32-lead leadless Quad Flatpack (VQFN) packages. Operating temperature is specified from –40°C to +85°C.
2. Feature
1. Two low noise PGAs and two high resolution ADCs (ADS1292 and ADS1292R)
2. Low power consumption: 335 μW/channel
3. Input referred noise: 8 μVPP (150Hz BW, G = 6)
4. Input Bias Current: 200 pA
5. Data rate: 125 SPS to 8 kSPS
6. CMRR: 120 dB
7. Programmable gain: 1, 2, 3, 4, 6, 8 or 12
8. Consumables: Monopolar or Bipolar
– Analog: 2.7 V to 5.25 V
– Digital: 1.7 V to 3.6 V
9. Built-in right leg drive amplifier, lead detection, test signal
10. Integrated respiratory impedance measurement (ADS1292R)
11. Built-in oscillator and reference
12. Flexible power-down, standby mode
13. SPI™ compatible serial interface
14. Operating temperature range: –40°C to +85°C
3. Application
1. Medical Instrumentation (ECG), including:
– Patient monitoring: Holter, events, stress and vital signs including ECG, AED and telemedicine
– Personal care and fitness monitors (heart rate, respiration and EKG)
2. High-precision, simultaneous, multi-channel data acquisition

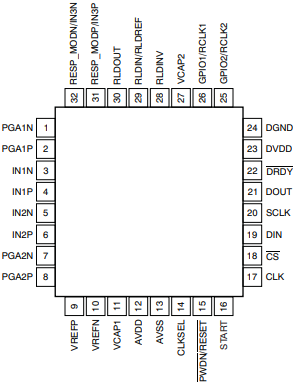

4. Pin configuration
