JS207011SCQNR Switches |
|
| Allicdata Part #: | CKN10709TR-ND |
| Manufacturer Part#: |
JS207011SCQNR |
| Price: | $ 0.00 |
| Product Category: | Switches |
| Manufacturer: | C&K |
| Short Description: | SWITCH SLIDE DP3T 300MA 6VSlide Switch DP3T Surfac... |
| More Detail: | N/A |
| DataSheet: |  JS207011SCQNR Datasheet/PDF |
| Quantity: | 8000 |
| Series: | JS |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Circuit: | DP3T |
| Contact Timing: | Not Specified |
| Switch Function: | On-On-Mom |
| Current Rating: | 300mA (DC) |
| Voltage Rating - DC: | 6V |
| Voltage Rating - AC: | -- |
| Actuator Type: | Standard |
| Actuator Length: | 2.00mm |
| Contact Material: | Copper Alloy |
| Contact Finish: | Silver |
| Mounting Type: | Surface Mount |
| Termination Style: | Gull Wing |
| Features: | -- |
| Operating Temperature: | -40°C ~ 85°C |
| Actuator Material: | Polyamide (PA46), Nylon 4/6 |
| Switch Travel: | 2.00mm |
| Mechanical Life: | -- |
| Electrical Life: | 5,000 Cycles |
| Operating Force: | -- |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Features/Benefits
1. Positive detent
2. Low profile
3. IR reflow to 260º solder profile
4. Surface and thru hole mounting
5. SPDT, DPDT, DP3T models
6. RoHS compliant
2. Specifications
1. CONTACT RATING: 6 VDC @ 0.3A
2. ELECTRICAL LIFE: 5,000 make-and-break cycles
3. CONTACT RESISTANCE: 70 m Ω max.
4. INSULATION RESISTANCE: 100 M Ω min. @ 500V.
5. DIELECTRIC STRENGTH: 500 VAC min. @ sea level.
6. OPERATING TEMPERATURE: -40ºC to +85ºC
7. STORAGE TEMPERATURE: -40ºC to +85ºC
3. Materials
1. HOUSING: 4/6 nylon (UL94V-2), black.
2. ACTUATOR: 4/6 nylon (UL94V-2), black (some options white).
3. CONTACTS: Copper alloy, silver plated.
4. TERMINALS: Brass, silver plated
4. Typical Applications
1. Telecommunication products
2. Computer peripherals
3. Thermostat select switch
4. Instrumentation
5. Medical

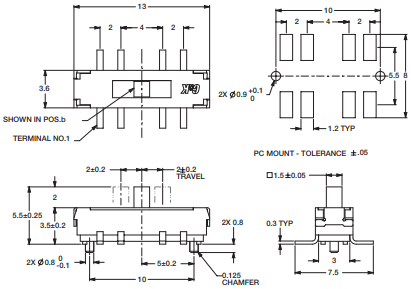

5. Package overview
