Allicdata Part #: | NEO-M9N-ND |
Manufacturer Part#: |
NEO-M9N |
Price: | $ 0.00 |
Product Category: | RF/IF and RFID |
Manufacturer: | U-Blox America Inc. |
Short Description: | NEOM9N has super-instrument-level GNSS positioning... |
More Detail: | N/A |
DataSheet: | NEO-M9N Datasheet/PDF |
Quantity: | 1000 |
Series: | NEO-M9 |
Packaging: | Tape & Reel (TR) |
Part Status: | Active |
Frequency: | 1575.42 MHz |
Sensitivity: | -167dBm |
Data Rate (Max): | -- |
Modulation or Protocol: | BeiDou, Galileo, GLONASS, GNSS, GPS |
Applications: | Automotive |
Current - Receiving: | -- |
Data Interface: | I²C, SPI, UART, USB |
Memory Size: | -- |
Antenna Connector: | -- |
Features: | -- |
Voltage - Supply: | 2.7V ~ 3.6V |
Operating Temperature: | -40°C ~ 85°C |
Package / Case: | 24-SMD Module |
Supplier Device Package: | Module |
Base Part Number: | NEO-M9N |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
NEO-M9N GNSS receiver has u-blox M9 standard precision GNSS platform, and Provides excellent sensitivity and acquisition time for all L1 GNSS systems. u-blox M9 receiver Provide different versions to serve automotive and industrial tracking applications, such as Navigation, telematics and drones. The u-blox M9 standard accuracy GNSS platform that provides instrument-level accuracy replaces The famous u-blox M8 product range. The u-blox M9 receiver supports simultaneous reception of four GNSS. It can be seen that there are many satellites Allow the receiver to choose the best signal. This can maximize positioning accuracy Under challenging conditions, such as deep urban canyons. The u-blox M9 receiver can detect interference and spoofing events and report them to the host so that The system reacts to such events. Advanced filtering algorithm reduces the influence of radio frequency Interference and interference, so that the product can operate as expected. Compared with the receiver, the receiver also has a higher navigation rate and improved safety GNSS generation before u-blox. NEO-M9N module adopts 12.2 x 16.0 mm NEO form factor LCC package.

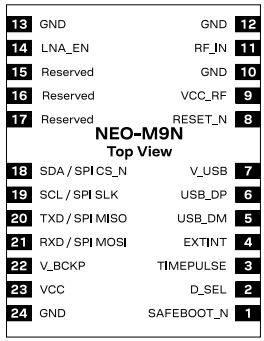

2. Pin configuration

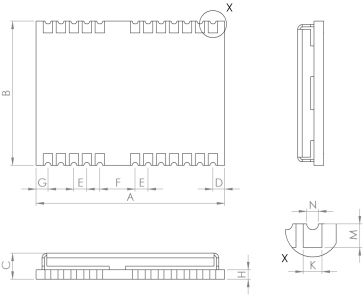

3. Mechanical specification
