P6KE27CA-E3/73 Circuit Protection

FEATURES

   1. Glass passivated chip junction

   2. Available in uni-directional and bi-directional

   3. 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %

   4. Excellent clamping capability

   5. Very fast response time

   6. Low incremental surge resistance

   7. Solder dip 275 °C max. 10 s, per JESD 22-B106

   8. AEC-Q101 qualified

   9. Material categorization: For definitions of compliance

PPLICATION NOTES

• This P6KE TVS series is a low cost commercial product for use in applications where large voltage transients can permanently damage voltage-sensitive components.

• The P6KE series device types are designed in a small package size where power and space is a consideration.

They are characterized by their high surge capability,extremely fast response time, and low impedance, (Ron).

Because of the unpredictable nature of transients, and the variation of the impedance with respect to these transients, impedance, per se, is not specified as a parametric value. However, a minimum voltage at low current conditions (BV) and a maximum clamping voltage (Vc) at a maximum peak pulse current is specified.

• In some instances, the thermal effect (see Vc Clamping Voltage) may be responsible for 50 % to 70 % of the observed voltage differential when subjected to high current pulses for several duty cycles, thus making a maximum impedance specification insignificant.

• In case of a severe current

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.

MECHANICAL DATA

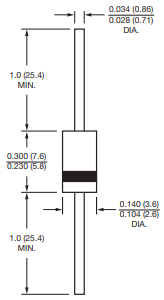

Case: DO-204AC, molded epoxy over passivated chip Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS compliant, commercial grade Base P/NHE3 - RoHS compliant, AEC-Q101 qualified Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix meets JESD 201 class 2 whisker test
