TPSMD26CA

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

     The TPSMD26CA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

2. Features

     1. Hi reliability application and automotive grade AEC-Q101 qualified

     2. SMT for minimal boad footprint

     3. Low profile package

     4. Typical failure mode is short from over-specified voltage or current

     5. Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

     6. IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)

     7. EFT protection of data lines in accordance with IEC 61000-4-4

     8. Built-in strain relief

     9. VBR @TJ = VBR@25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient)

   10. Glass passivated chip junction

   11. 3000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

   12. Fast response time: typically less than 1.0ps from 0V to VBR min

   13. Excellent clamping capability

   14. Low incremental surge resistance

   15. Typical IR ≤ 2µA for VR > 10V

   16. High temperature soldering guaranteed: 260°C/10 seconds at terminals

   17. UL Recognized compound meeting flammability rating V-0.

   18. Meet MSL level1, per J-STD-020, high temperature soldering guaranteed.

   19. Matte tin lead–free plated

   20. Halogen free and RoHS compliant

   21. Pb-free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)

3. Applications

     TVS Components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

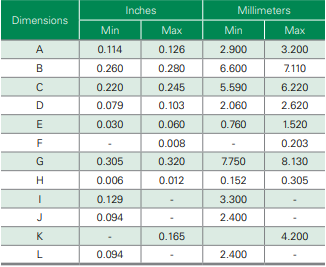

4. Pin configuration

5. Pin function
