1. DESCRIPTION

The DG201BDJ, DG202B analog switches are highly improved versions of the industry-standard DG201A, DG202. These devices are fabricated in Vishay Siliconix’ proprietary silicon gate CMOS process, resulting in lower on-resistance, lower leakage, higher speed, and lower power consumption. These quad single-pole single-throw switches are designed for a wide variety of applications in telecommunications, instrumentation, process control, computer peripherals, etc. An improved charge injection compensation design minimizes switching transients. The DG201B and DG202B can handle up to ± 22 V input signals, and have an improved continuous current rating of 30 mA. An epitaxial layer prevents latchup. All devices feature true bi-directional performance in the on condition, and will block signals to the supply voltages in the off condition. The DG201B is a normally closed switch and the DG202B is a normally open switch.

2. FEATURES

    1. ± 22 V supply voltage rating

    2. TTL and CMOS compatible logic

    3. Low on-resistance - RDS(on): 45 

    4. Low leakage - ID(on): 20 pA

    5. Single supply operation possible

    6. Extended temperature range

    7. Fast switching - tON: 120 ns

    8. Low glitching - Q: 1 pC

    9. Compliant to RoHS Directive 2002/95/EC

3. BENEFITS

    1. Wide analog signal range

    2. Simple logic interface

    3. Higher accuracy

    4. Minimum transients

    5. Reduced power consumption

    6. Superior to DG201A, DG202

    7. Space savings (TSSOP)

4. APPLICATIONS

    1. Industrial instrumentation

    2. Test equipment

    3. Communications systems

    4. Disk drives

    5. Computer peripherals

    6. Portable instruments

    7. Sample-and-hold circuits

5. Pin configuration

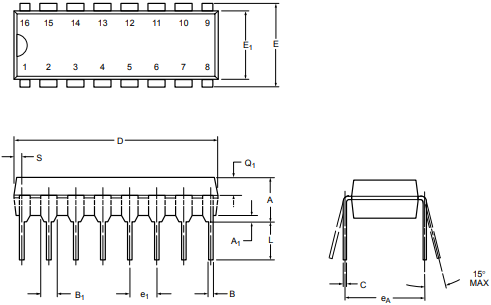

6. Package overview
