LM386M-1

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

The LM386M-1 and LM386MX-1 are power amplifiers designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200. The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386M-1 and LM386MX-1 ideal for battery operation.

2. Features

    1. Battery Operation

    2. Minimum External Parts

    3. Wide Supply Voltage Range: 4 V–12 V or 5 V–18 V

    4. Low Quiescent Current Drain: 4 mA

    5. Voltage Gains from 20 to 200

    6. Ground-Referenced Input

    7. Self-Centering Output Quiescent Voltage

    8. Low Distortion: 0.2% (AV = 20, VS = 6 V, RL = 8 Ω, PO = 125 mW, f = 1 kHz)

    9. Available in 8-Pin MSOP Package

3. Applications

    1. AM-FM Radio Amplifiers

    2. Portable Tape Player Amplifiers

    3. Intercoms

    4. TV Sound Systems

    5. Line Drivers

    6. Ultrasonic Drivers

    7. Small Servo Drivers

    8. Power Converters

4. Pin Configuration

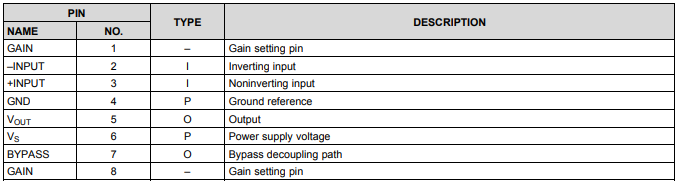

5. Pin Functions
