Allicdata Part #: | MPM38111GR-Z-ND |
Manufacturer Part#: |
MPM38111GR-Z |
Price: | $ 1.95 |
Product Category: | Power Supplies - Board Mount |
Manufacturer: | Monolithic Power Systems Inc. |
Short Description: | DC DC CONVERTER 1.8V 1.2VNon-Isolated PoL Module D... |
More Detail: | N/A |
DataSheet: | MPM38111GR-Z Datasheet/PDF |
Quantity: | 14578 |
Lead Free Status / RoHS Status: | |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
2500 +: | $ 1.95000 |
Series: | MPM38111 |
Packaging: | Tape & Reel (TR) |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Type: | Non-Isolated PoL Module |
Number of Outputs: | 2 |
Voltage - Input (Min): | 2.7V |
Voltage - Input (Max): | 6V |
Voltage - Output 1: | 1.8V |
Voltage - Output 2: | 1.2V |
Voltage - Output 3: | -- |
Voltage - Output 4: | -- |
Current - Output (Max): | 1A, 1A |
Power (Watts): | -- |
Applications: | ITE (Commercial) |
Voltage - Isolation: | -- |
Features: | -- |
Operating Temperature: | -40°C ~ 125°C (TJ) |
Efficiency: | 93% |
Mounting Type: | Surface Mount |
Package / Case: | 14-PowerLFQFN Module |
Size / Dimension: | 0.16" L x 0.16" W x 0.06" H (4.1mm x 4.1mm x 1.5mm) |
Control Features: | -- |
Supplier Device Package: | 14-QFN (4x4) |
Base Part Number: | MPM38111GR-Z |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. DESCRIPTION
The MPM38111 is a dual-channel DC/DC module. The module includes a monolithic,step-down, switch-mode converter with built-in,internal power MOSFETs and inductors. The MPM38111 is designed to simplify power system design and provide ease of use. The MPM38111 operates from a 2.7V to 6V input, generates an output voltage as low as 0.608V, and has a 45µA quiescent current,making it ideal for powering portable equipment that run on a single-cell Lithium-ion (Li+) battery. The MPM38111 integrates dual, 85mΩ,high-side switches and 40mΩ synchronous rectifiers for high efficiency without an external Schottky diode. Peak-current-mode control and internal compensation limit the minimum number of readily available external components. Full protection features include cycle-by-cycle current limiting and thermal shutdown. The MPM38111 is available in a small, surfacemounted, QFN-14 (4mmx4mmx1.6mm) package.
2. FEATURES
1. Dual 1A Output Current
2. >93% Peak Efficiency
3. >80% Light-Load Efficiency
4. Ultra-Low IQ: 45μA
5. 85mΩ and 40mΩ Internal Power MOSFET
6. Wide 2.7V to 6V Operating Input Range
7. Default 1MHz Switching Frequency
8. 180° Phase-Shifted Operation
9. 100% Duty Cycle Operation
10. Cycle-by-Cycle Over-Current Protection (OCP)
11. Short-Circuit Protection (SCP) with Hiccup Mode
12. Thermal Shutdown
13. Available in a Small QFN-14 (4mmx4mmx1.6mm) Package
3. APPLICATIONS
1. Optical Modules
2. Industrial Products
3. IoT Devices
4. LDO Replacement
5. Medical Devices

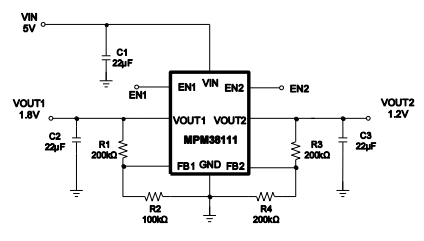

4. TYPICAL APPLICATION
5. PACKAGE REFERENCE
Part Number | Manufacturer | Price | Quantity | Description |
---|
MPM3686GRU | Monolithic P... | 12.81 $ | 81 | IC REG BUCK SYNC 18V 20AN... |
MPM3606GQV-P | Monolithic P... | 1.34 $ | 1000 | IC REG BUCK ADJ 0.6A SYNC... |
MPM3608SJ | Tamura | 11.04 $ | 19 | POWER MODULE (36V; 0.75A)... |
MPM3805GQB-18-P | Monolithic P... | 1.02 $ | 2500 | IC REG BUCK 1.8V 0.6A SYN... |
MPM3610AGQV-P | Monolithic P... | 1.51 $ | 500 | IC REG BUCK ADJ 0.6A SYNC... |
MPM3805GQB-33-P | Monolithic P... | 1.02 $ | 1000 | DC DC CONVERTER 3.3V 0.6A... |
MPM3805GQB-12-Z | Monolithic P... | 0.62 $ | 1000 | DC DC CONVERTER 1.2V 0.6A... |
MPM3805GQB-18-Z | Monolithic P... | 0.62 $ | 1000 | DC DC CONVERTER 1.8V 0.6A... |
MPM3805GQB-25-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 2.5V 0.6A... |
MPM3805GQB-33-Z | Monolithic P... | 0.62 $ | 1000 | DC DC CONVERTER 3.3V 0.6A... |
MPM3810GQB-12-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 1.2V 1.2A... |
MPM3810GQB-18-Z | Monolithic P... | 0.69 $ | 1000 | DC DC CONVERTER 1.8V 1.2A... |
MPM3810GQB-25-Z | Monolithic P... | 0.69 $ | 1000 | DC DC CONVERTER 2.5V 1.2A... |
MPM3805GQB-25-P | Monolithic P... | 1.02 $ | 500 | IC REG BUCK 2.5V 0.6A SYN... |
MPM3810GQB-18-P | Monolithic P... | -- | 500 | IC REG BUCK 1.8V 1.2A SYN... |
MPM3805GQB-Z | Monolithic P... | 0.62 $ | 1000 | DC DC CONVERTER 2.5-6V 0.... |
MPM3810GQB-33-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 3.3V 1.2A... |
MPM3606AGQV-Z | Monolithic P... | 0.95 $ | 1000 | DC DC CONVERTER 4.5-21V 0... |
MPM3606GQV-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 4.5-21V 0... |
MPM3820GQV-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 0.6-6V 2A... |
MPM3610AGQV-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 4.5-21V 0... |
MPM3610GQV-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 4.5-21V 1... |
MPM3620AGQV-Z | Monolithic P... | 1.26 $ | 1000 | DC DC CONVERTER 0.8-19.9V... |
MPM3620GQV-Z | Monolithic P... | 1.26 $ | 1000 | DC DC CONVERTER 4.5-24V 2... |
MPM3830GQV-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 2.7-6V 3A... |
MPM3506AGQV-Z | Monolithic P... | 1.74 $ | 1000 | DC DC CONVERTER 3.3VNon-I... |
MPM3515GQV-Z | Monolithic P... | 1.87 $ | 1000 | DC DC CONVERTER 3.3VNon-I... |
MPM38222GR-Z | Monolithic P... | -- | 1000 | DC DC CONVERTER 1.8V 1.2V... |
MPM3506AGQV-P | Monolithic P... | 2.34 $ | 1000 | DC DC CONVERTER 0.81-32V ... |
MPM3515GQV-AEC1-Z | Monolithic P... | -- | 2500 | DC DC CONVERTER 3.3VNon-I... |
MPM3510AGQV-P | Monolithic P... | 2.59 $ | 1000 | DC DC CONVERTER 0.81-32V ... |
MPM3680GRE | Monolithic P... | 6.07 $ | 168 | DC DC CONVERTER 0.65-5VNo... |
MPM3682GRE | Monolithic P... | -- | 168 | DC DC CONVERTER 0.65-5VNo... |
MPM3684GRU | Monolithic P... | -- | 1000 | DC DC CONVERTER 0.65-5VNo... |
MPM3810GQB-25-P | Monolithic P... | 1.11 $ | 1000 | DC DC CONVERTER 2.5V 1.2A... |
MPM3810GQB-12-P | Monolithic P... | 1.11 $ | 1000 | DC DC CONVERTER 1.2V 1.2A... |
MPM3804GG-P | Monolithic P... | 0.95 $ | 1000 | DC DC CONVERTER 0.6A 5.5V... |
MPM3805GQB-12-P | Monolithic P... | 1.02 $ | 1000 | DC DC CONVERTER 1.2V 0.6A... |
MPM3810GQB-33-P | Monolithic P... | -- | 1000 | DC DC CONVERTER 3.3V 1.2A... |
MPM38111GR-Z | Monolithic P... | 1.95 $ | 14578 | DC DC CONVERTER 1.8V 1.2V... |
