PIC32MX564F128H-I/PT

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Features

    1. 5-stage pipeline

    2. 32-bit address and data paths

    3. MIPS32 Enhanced Architecture (Release 2)

        - Multiply-accumulate and multiply-subtract instructions

        - Targeted multiply instruction

        - Zero/One detect instructions

        - WAIT instruction

        - Conditional move instructions (MOVN, MOVZ)

        - Vectored interrupts

        - Programmable exception vector base

        - Atomic interrupt enable/disable

        - GPR shadow registers to minimize latency for interrupt handlers

        - Bit field manipulation instructions

    4. MIPS16e® code compression

        - 16-bit encoding of 32-bit instructions to improve code density

        - Special PC-relative instructions for efficient loading of addresses and constants

        - SAVE and RESTORE macro instructions for setting up and tearing down stack frames within subroutines

        - Improved support for handling 8-bit and 16-bit data types

    5. Simple Fixed Mapping Translation (FMT) mechanism

    6. Simple dual bus interface

        - Independent 32-bit address and data busses

        - Transactions can be aborted to improve interrupt latency

    7. Autonomous multiply/divide unit

        - Maximum issue rate of one 32x16 multiply per clock

        - Maximum issue rate of one 32x32 multiply every other clock

        - Early-in iterative divide. Minimum 11 and maximum 33 clock latency (dividend (rs) sign extension-dependent)

    8. Power control

        - Minimum frequency: 0 MHz

        - Low-Power mode (triggered by WAIT instruction)

        - Extensive use of local gated clocks

    9. EJTAG debug and instruction trace

        - Support for single stepping

        - Virtual instruction and data address/value

        - Breakpoints

        - PC tracing with trace compression

2. Operating Conditions

        - 2.3V to 3.6V, -40ºC to +105ºC, DC to 80 MHz

3. Core: 80 MHz/105 DMIPS MIPS32® M4K®

    1. MIPS16e® mode for up to 40% smaller code size

    2. Code-efficient (C and Assembly) architecture

    3. Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply

4. Clock Management

    1. 0.9% internal oscillator (on some variants)

    2. Programmable PLLs and oscillator clock sources

    3. Fail-Safe Clock Monitor (FSCM)

    4. Independent Watchdog Timer

    5. Fast wake-up and start-up

5. Power Management

    1. Low-power management modes (Sleep and Idle)

    2. Integrated Power-on Reset, Brown-out Reset

    3. 0.5 mA/MHz dynamic current (typical)

    4. 41 µA IPD current (typical)

6. Graphics Features

    1. External graphics interface with up to 34 Parallel Master Port (PMP) pins:

        - Interface to external graphics controller

        - Capable of driving LCD directly with DMA and internal or external memory

7. Analog Features

    1. ADC Module:

        - 10-bit 1 Msps rate with one Sample and Hold (S&H)

        - 16 analog inputs

        - Can operate during Sleep mode

    2. Flexible and independent ADC trigger sources

    3. Comparators:

        - Two dual-input Comparator modules

        - Programmable references with 32 voltage points

8. Timers/Output Compare/Input Capture

    1. Five General Purpose Timers:

        - Five 16-bit and up to two 32-bit Timers/Counters

    2. Five Output Compare (OC) modules

    3. Five Input Capture (IC) modules

    4. Real-Time Clock and Calendar (RTCC) module

9. Communication Interfaces

    1. USB 2.0-compliant Full-Speed OTG controller

    2. 10/100 Mbps Ethernet MAC with MII and RMII interface

    3. CAN module:

        - 2.0B Active with DeviceNet™ addressing support

    4. Six UART modules (20 Mbps):

        - Supports LIN 2.1 protocols and IrDA® support

    5. Up to four 4-wire SPI modules (25 Mbps)

    6. Up to five I2C modules (up to 1 Mbaud) with SMBus support

    7. Parallel Master Port (PMP)

10. Direct Memory Access (DMA)

    1. Up to eight channels of hardware DMA with automatic data size detection

    2. 32-bit Programmable Cyclic Redundancy Check (CRC)

    3. Six additional channels dedicated to USB, Ethernet and CAN modules

11. Input/Output

    1. 15 mA or 10 mA source/sink for standard VOH/VOL and up to 22 mA for non-standard VOH1

    2. 5V-tolerant pins

    3. Selectable open drain and pull-ups

    4. External interrupts

12. Qualification and Class B Support

    1. AEC-Q100 REVH (Grade 2 -40ºC to +105ºC)

    2. Class B Safety Library, IEC 60730

13. Debugger Development Support

    1. In-circuit and in-application programming

    2. 4-wire MIPS® Enhanced JTAG interface

    3. Unlimited program and six complex data breakpoints

    4. IEEE 1149.2-compatible (JTAG) boundary scan

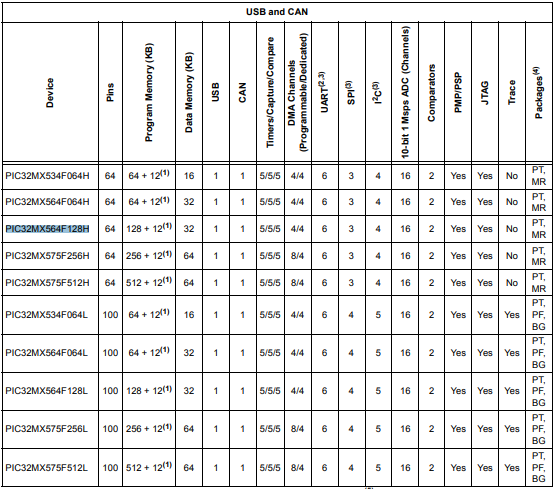

14. USB AND CAN FEATURES

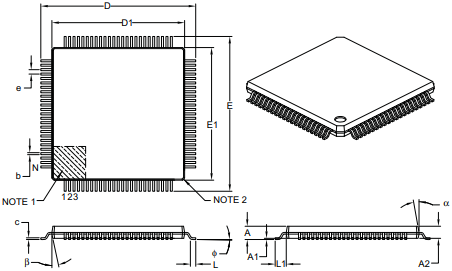

15. Package overview
