S5DL-TP Discrete Semiconductor Products |
|
| Allicdata Part #: | S5DL-TPMSTR-ND |
| Manufacturer Part#: |
S5DL-TP |
| Price: | $ 0.00 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Micro Commercial Co |
| Short Description: | DIODE GEN PURP 200V 5A DO214ABDiode Standard 200V ... |
| More Detail: | N/A |
| DataSheet: |  S5DL-TP Datasheet/PDF |
| Quantity: | 3000 |
| Series: | S5DL |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Diode Type: | Standard |
| Type: | Standard Recovery Rectifiers |
| Voltage - DC Reverse (Vr) (Max): | 200V |
| Unidirectional Channels: | -- |
| Current - Average Rectified (Io): | 5A |
| Voltage - Reverse Standoff (Typ): | -- |
| Voltage - Forward (Vf) (Max) @ If: | 1.2V @ 5A |
| Voltage - Breakdown (Min): | -- |
| Speed: | Standard Recovery >500ns, > 200mA (Io) |
| Voltage - Clamping (Max) @ Ipp: | -- |
| Reverse Recovery Time (trr): | -- |
| Current - Peak Pulse (10/1000µs): | -- |
| Current - Reverse Leakage @ Vr: | 10µA @ 200V |
| Power - Peak Pulse: | -- |
| Capacitance @ Vr, F: | 100pF @ 4V, 1MHz |
| Power Line Protection: | -- |
| Mounting Type: | Surface Mount |
| Applications: | -- |
| Package / Case: | DO-214AB, SMC |
| Capacitance @ Frequency: | -- |
| Supplier Device Package: | DO-214AB (SMC) |
| Operating Temperature: | -- |
| Operating Temperature - Junction: | -55°C ~ 150°C |
| Base Part Number: | S5D |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Feature
1. Lead-free surface treatment/compliant with RoHS (Note 1) ("P" suffix indicates Compliance. See ordering information)
2. For surface mount applications
3. High current capability
4. Very low thermal resistance
5. Halogen-free can be provided upon request by adding the suffix "-HF"
6. Epoxy resin meets UL 94 V-0 flammability rating
7. Moisture sensitivity level 1
2. Maximum rating
1. Operating junction temperature range: -55⁰C to +150⁰C
2. Storage temperature range: -55⁰C to +150⁰C
3. Thermal resistance: 10°C/W junction to lead
4. Thermal resistance: 18°C/W junction to case
5. Thermal resistance: 50°C/W junction to environment
3. Product Size

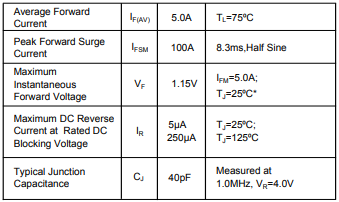

4. Electrical Characteristics
