| Allicdata Part #: | SB160-E3/54GITR-ND |
| Manufacturer Part#: |
SB160-E3/54 |
| Price: | $ 0.00 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Vishay Semiconductor Diodes Division |
| Short Description: | DIODE SCHOTTKY 60V 1A DO204ALDiode Schottky 60V 1A... |
| More Detail: | N/A |
| DataSheet: |  SB160-E3/54 Datasheet/PDF |
| Quantity: | 5500 |
| Series: | -- |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Diode Type: | Schottky |
| Type: | Schottky Diode |
| Voltage - DC Reverse (Vr) (Max): | 60V |
| Unidirectional Channels: | -- |
| Current - Average Rectified (Io): | 1A |
| Voltage - Reverse Standoff (Typ): | -- |
| Voltage - Forward (Vf) (Max) @ If: | 650mV @ 1A |
| Voltage - Breakdown (Min): | -- |
| Speed: | Fast Recovery = 200mA (Io) |
| Voltage - Clamping (Max) @ Ipp: | -- |
| Reverse Recovery Time (trr): | -- |
| Current - Peak Pulse (10/1000µs): | -- |
| Current - Reverse Leakage @ Vr: | 500µA @ 60V |
| Power - Peak Pulse: | -- |
| Capacitance @ Vr, F: | -- |
| Power Line Protection: | -- |
| Mounting Type: | Through Hole |
| Applications: | -- |
| Package / Case: | DO-204AL, DO-41, Axial |
| Capacitance @ Frequency: | -- |
| Supplier Device Package: | DO-204AL (DO-41) |
| Operating Temperature: | -- |
| Operating Temperature - Junction: | -65°C ~ 150°C |
| Base Part Number: | SB160 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. FEATURES
1. Guardring for overvoltage protection
2. Very small conduction losses
3. Extremely fast switching
4. Low forward voltage drop
5. High forward surge capability
6. High frequency operation
7. Solder dip 275 °C max. 10 s, per JESD 22-B106

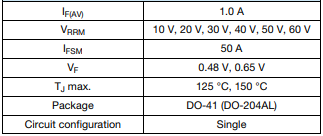

2. Main features
3. TYPICAL APPLICATIONS
For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
4. MECHANICAL DATA
1. Molding compound meets UL 94 V-0 flammability rating
2. Base P/N-E3 - RoHS-compliant, commercial grade
3. Terminals: matte tin plated leads, solderable per
4. J-STD-002 and JESD 22-B102
5. E3 suffix meets JESD 201 class 1A whisker test
6. Polarity: color band denotes the cathode end
5. Package dimensions
