SI8220BB-D-ISR Isolators

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Describe

SI8220BB-D-ISR is a high-performance function upgrade for optocouplers Drivers, such as HCPL-3120 and HPCL-0302, provide 2.5 A Peak output current. It utilizes Silicon Laboratories’proprietary silicon Isolation technology, offering 2.5, 3.75 or 5.0 kVRMS options Comply with UL1577 withstand voltage. The technology can achieve higher Compared with optically isolated drivers, it reduces temperature and aging changes, tighter part-to-part matching and excellent common-mode rejection. Although the input circuit imitates a LEDs require less drive current to improve efficiency. The propagation delay time has nothing to do with the input drive current, resulting in Consistently short propagation times, tighter inter-unit differences, and Greater flexibility in input circuit design.

2. Feature

    1. Function upgrade of HCPL-0302, HCPL-3120, TLP350 and other similar products Optical drive

    2. Maximum 60 ns propagation delay (independent of input drive current)

    3. Compared with the photoelectric driver, the matching degree of component to component is improved by 14 times

    4. 2.5, 3.75 and 5.0 kVRMS isolation

    5. Transient immunity

        - 30 kV/microsecond

    6. Under-voltage lockout protection with hysteresis

    7. Resistance to temperature and aging

    8. Gate driver power supply voltage

        - 6.5V to 24V

    9. AEC-Q100 certification

  10. Wide operating range

        - –40 to +125 °C

  11. RoHS compliant package

        - SOIC-8 narrow body

        - SOIC-16 wide body

3. Application

    1. IGBT/MOSFET gate drive

    2. Industrial control system

    3. Switching power supply

    4. UPS system

    5. Motor control drive

    6. Inverter

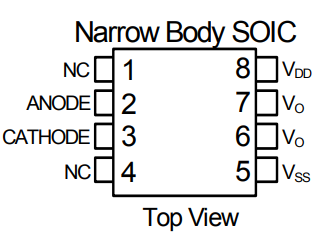

4. Pin configuration

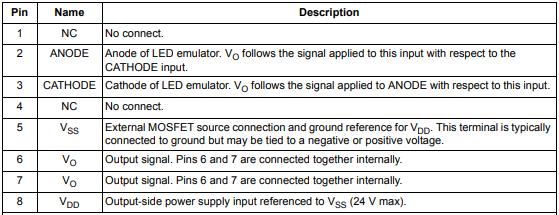

5. Pin Descriptions

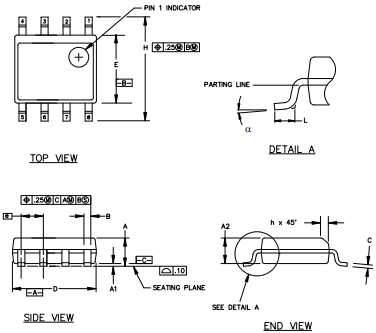

6. Package overview
