| Allicdata Part #: | 497-13717-2-ND |
| Manufacturer Part#: |
STPS2200U |
| Price: | $ 0.14 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | STMicroelectronics |
| Short Description: | DIODE SCHOTTKY 200V 2A SMBDiode Schottky 200V 2A S... |
| More Detail: | N/A |
| DataSheet: |  STPS2200U Datasheet/PDF |
| Quantity: | 1000 |
| 1 +: | $ 0.14000 |
| 10 +: | $ 0.13580 |
| 100 +: | $ 0.13300 |
| 1000 +: | $ 0.13020 |
| 10000 +: | $ 0.12600 |
| Series: | STPS2200 |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Diode Type: | Schottky |
| Type: | DESCRIPTION |
| Voltage - DC Reverse (Vr) (Max): | 200V |
| Unidirectional Channels: | -- |
| Current - Average Rectified (Io): | 2A |
| Voltage - Reverse Standoff (Typ): | -- |
| Voltage - Forward (Vf) (Max) @ If: | 800mV @ 2A |
| Voltage - Breakdown (Min): | -- |
| Speed: | Fast Recovery = 200mA (Io) |
| Voltage - Clamping (Max) @ Ipp: | -- |
| Reverse Recovery Time (trr): | -- |
| Current - Peak Pulse (10/1000µs): | -- |
| Current - Reverse Leakage @ Vr: | 5µA @ 200V |
| Power - Peak Pulse: | -- |
| Capacitance @ Vr, F: | -- |
| Power Line Protection: | -- |
| Mounting Type: | Surface Mount |
| Applications: | -- |
| Package / Case: | DO-214AA, SMB |
| Capacitance @ Frequency: | -- |
| Supplier Device Package: | SMB |
| Operating Temperature: | -- |
| Operating Temperature - Junction: | -40°C ~ 175°C |
| Base Part Number: | STPS2200U |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
This device is a 200 V Schottky rectifier suitable for switch-mode power supplies and high-frequency DC-to-DC converters. The device adopts SMB, SMBflat package, especially suitable for low voltage, high Inverter, freewheeling and polarity protection. It is also ideal for all LED lighting applications.
2. Feature
1. Low forward pressure drop
2. Very small conduction loss
3. Negligible switching loss
4. Extremely fast switching
5. Low thermal resistance
6. -40°C minimum working Tj
7. ECOPACK®2 compliant components

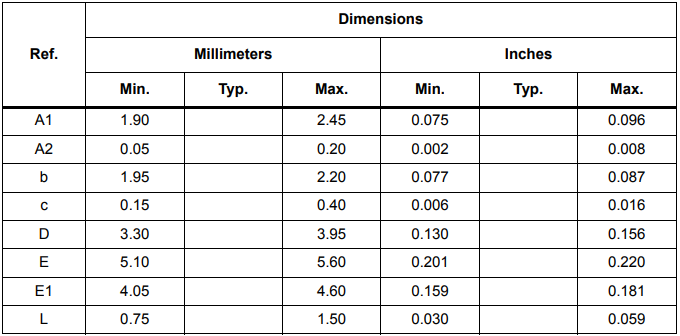

3. Package overview
4. Package information
1. Epoxy resin meets UL94, V0
2. Lead-free package
3. Cooling method: through conduction (C)
4. Recommended torque value: 0.4 to 0.6 N·m
