1N6292A

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Describe

    1. This series of silicon transient suppressors are used for Applications of large voltage transients Permanently damage voltage sensitive components.

    2. TVS diodes can be used in the following applications Inductive lightning in rural or remote transmission Wire poses a danger to electronic circuits.

    3. This transient voltage suppression diode has a pulse The rated power for 1 ms is 1500 W. The response time is TVS diode clamping action effective instant (1 x 10-9 s bidirectional); therefore, they can protect Integrated circuits, MOS devices, hybrid devices and others Voltage sensitive semiconductors and components. television Diodes can also be used in series or parallel to increase Peak power rating.

2. Feature

    1. Glass passivation chip junction

    2. Provide one-way and two-way

    3. 1500 W peak pulse power capability, 10/1000 μs waveform, repetition rate (duty cycle): 0.01%

    4. Excellent clamping capacity

    5. Very fast response time

    6. Low incremental surge resistance

    7. AEC-Q101 qualified

    8. The maximum solder immersion temperature is 275 °C. 10 seconds, according to JESD 22-B106

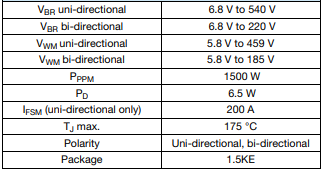

3. PRIMARY CHARACTERISTICS

4. Application equipment

    For bidirectional types, use the CA suffix (e.g. 1.5KE220CA) The electrical characteristics apply to both directions.

5. Application

    Voltage protection of sensitive electronic products Transients caused by inductive load switching and lighting IC, MOSFET, signal lines of consumer sensor units, Computers, industry, automobiles and telecommunications.

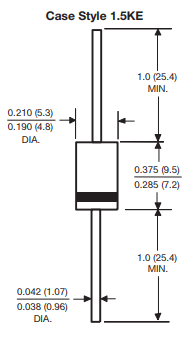

6. Package overview
