| Allicdata Part #: | 4N33W-ND |
| Manufacturer Part#: |
4N33W |
| Price: | $ 0.00 |
| Product Category: | Isolators |
| Manufacturer: | ON Semiconductor |
| Short Description: | OPTOISO 5.3KV DARL W/BASE 6DIPOptoisolator Darling... |
| More Detail: | N/A |
| DataSheet: |  4N33W Datasheet/PDF |
| Quantity: | 1000 |
| Series: | -- |
| Packaging: | Tube |
| Part Status: | Obsolete |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5300Vrms |
| Current Transfer Ratio (Min): | 500% @ 10mA |
| Current Transfer Ratio (Max): | -- |
| Turn On / Turn Off Time (Typ): | 5µs, 100µs (Max) |
| Rise / Fall Time (Typ): | -- |
| Input Type: | DC |
| Output Type: | Darlington with Base |
| Voltage - Output (Max): | 30V |
| Current - Output / Channel: | 150mA |
| Voltage - Forward (Vf) (Typ): | 1.2V |
| Current - DC Forward (If) (Max): | 80mA |
| Vce Saturation (Max): | 1V |
| Operating Temperature: | -40°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 6-DIP (0.400", 10.16mm) |
| Supplier Device Package: | 6-DIP |
| Base Part Number: | 4N33 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
The 4N33W have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
2. Features
1. High sensitivity to low input drive current
2. Meets or exceeds all JEDEC Registered Specifications
3. VDE 0884 approval available as a test option
– add option .300.
3. Applications
1. Low power logic circuits
2. Telecommunications equipment
3. Portable electronics
4. Solid state relays
5. Interfacing coupling systems of different potentials and impedances
4. Pin configuration

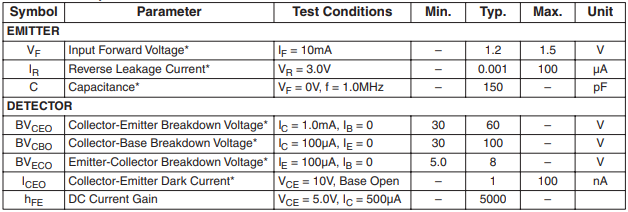

5. Electrical Characteristics

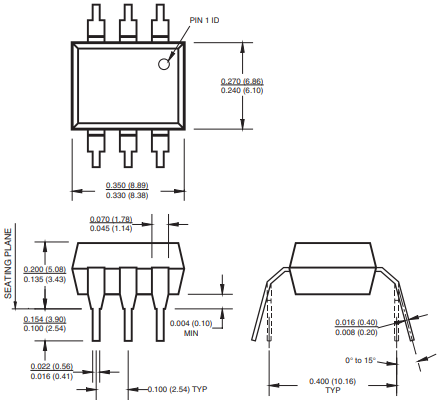

6. Package overview
