Allicdata Part #: | ADP3605ARZ-R7TR-ND |
Manufacturer Part#: |
ADP3605ARZ-R7 |
Price: | $ 0.00 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Analog Devices Inc. |
Short Description: | IC REG SWTCHD CAP INV ADJ 8SOICCharge Pump Switchi... |
More Detail: | N/A |
DataSheet: | ADP3605ARZ-R7 Datasheet/PDF |
Quantity: | 1000 |
Series: | ADP3605 |
Packaging: | Tape & Reel (TR) |
Part Status: | Not For New Designs |
Function: | Step-Up/Step-Down |
Output Configuration: | Negative |
Topology: | Charge Pump |
Output Type: | Adjustable |
Number of Outputs: | 1 |
Voltage - Input (Min): | 3V |
Voltage - Input (Max): | 6V |
Voltage - Output (Min/Fixed): | -3V |
Voltage - Output (Max): | -12V |
Current - Output: | 120mA |
Frequency - Switching: | 250kHz |
Synchronous Rectifier: | No |
Operating Temperature: | -40°C ~ 85°C (TA) |
Mounting Type: | Surface Mount |
Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package: | 8-SOIC |
Base Part Number: | ADP3605 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. DESCRIPTION
The ADP3605ARZ-R7 is a 120 mA regulated output, switched capacitor voltage inverter. It provides a regulated output voltage with minimum voltage loss and requires a minimum number of external components. In addition, the ADP3605 does not require the use of an inductor. Pin-for-pin and functionally compatible with the ADP3604, the internal oscillator of the ADP3605 runs at a 500 kHz nominal frequency that produces an output switching frequency of 250 kHz. This allows for the use of smaller charge pump and filter capacitors. The ADP3605 provides an accuracy of ±3% with a typical shutdown current of 2 µA. It can also operate from a single positive input voltage as low as 3 V. The ADP3605 is adjustable via external resistors over a −3 V to −6 V range.
2. FEATURES
1. Fully regulated adjustable output voltage
2. High output current: 120 mA
3. Output accuracy: ±3%
4. 250 kHz switching frequency
5. Low shutdown current: 2 µA typical
6. Input voltage range: 3 V to 6 V
7. 8-Lead SOIC package
8. −40°C to +85°C ambient temperature range
3. APPLICATIONS
1. Voltage inverters
2. Voltage regulators
3. Computer peripherals and add-on cards
4. Portable instruments
5. Battery powered devices
6. Pagers and radio control receivers
7. Disk drives
8. Mobile phones

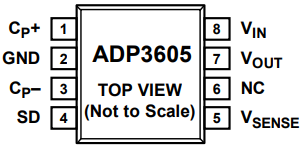

4. PIN CONFIGURATION

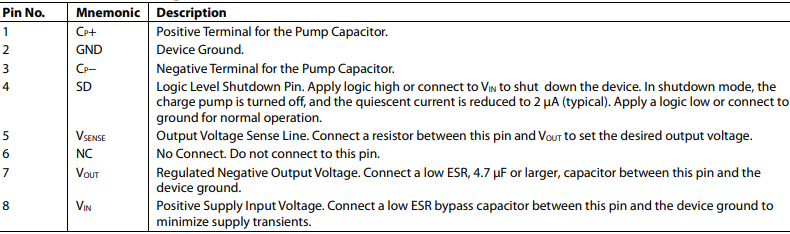

5. FUNCTION DESCRIPTIONS
