BAT46W-7-F

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

   This Schottky Barrier diode is designed to meet the stringent requirements of AEC-Q101. It is ideally suited to use as:

    1. Polarity Protection Diode

    2. Re-circulating Diode

    3. Switching Diode

2. Features and Benefits

    1. High Breakdown Voltage

    2. Low Turn-on Voltage

    3. Guard Ring Construction for Transient Protection

    4. Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

    5. Halogen and Antimony Free. “Green” Device (Note 3)

    6. Qualified to AEC-Q101 Standards for High Reliability

    7. An Automotive-Compliant Part is Available Under Separate Datasheet (BAT46WQ)

3. Mechanical Data

    1. Case Material: Molded Plastic.

        - UL Flammability Classification Rating 94V-0

    2. Moisture Sensitivity: Level 1 per J-STD-020

    3. Matte Tin Finish Annealed over Alloy 42 Leadframe.

        - Terminals: Solderable per MIL-STD-202, Method 208

    4. Polarity: Cathode Band

    5. Weight: 0.01 grams (Approximate)

4. Package Outline

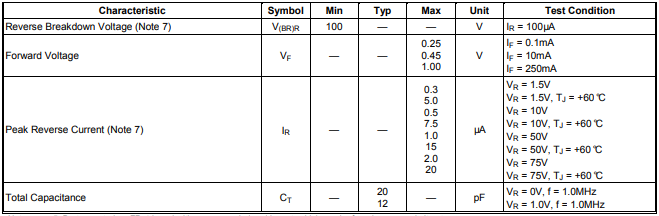

5. Electrical Characteristics
