Allicdata Part #: | DSPIC33EP256MU806-E/PT-ND |
Manufacturer Part#: |
DSPIC33EP256MU806-E/PT |
Price: | $ 0.00 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Microchip Technology |
Short Description: | IC MCU 16BIT 256KB FLASH 64TQFPdsPIC dsPIC™ 33EP M... |
More Detail: | N/A |
DataSheet: | DSPIC33EP256MU806-E/PT Datasheet/PDF |
Quantity: | 12500 |
Series: | dsPIC™ 33EP |
Packaging: | Tray |
Part Status: | Active |
Applications: | Induction Heating, Uninterruptible Power Supply (UPS), DC/AC Inverter, Compressor Motor Control, BLDC Motor Control, Inlet Motor Control |
Core Processor: | dsPIC |
Core Size: | 16-Bit |
Speed: | 60 MIPs |
Controller Series: | -- |
Connectivity: | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART, USB OTG |
Peripherals: | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
Interface: | CAN、I2C、SPI、UART |
Number of I/O: | 51 |
Program Memory Size: | 256KB (85.5K x 24) |
Voltage - Supply: | 3V ~ 3.6V |
Program Memory Type: | FLASH |
EEPROM Size: | -- |
Mounting Type: | Surface Mount |
RAM Size: | 12K x 16 |
Voltage - Supply (Vcc/Vdd): | 3 V ~ 3.6 V |
Data Converters: | A/D 24x10b/12b |
Oscillator Type: | Internal |
Operating Temperature: | -40°C ~ 125°C (TA) |
Package / Case: | 64-TQFP |
Supplier Device Package: | 64-TQFP (10x10) |
Base Part Number: | DSPIC33EP256MU806 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Advanced Simulation Features
1. Two independent ADC modules
- One ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
- One 10-bit ADC, 1.1 Msps with four S&H
- Eight S&Hs using two ADC 10-bit modules
- 24 analog channels (64-pin device), up to 32 analog channels Channels (100/121/144 pin devices)
2. Flexible and independent ADC trigger source
3. Comparators
- Up to three analog comparator modules
- Programmable reference with 32 voltage points
2. Timer/Output Compare/Input Capture
1. 27 general purpose timers
- Nine 16-bit and up to four 32-bit timers/counters
- 16 OC modules configurable as timer/counter
- Two 32-bit Quadrature Encoder Interfaces (QEI) Modules Configurable as Timer/Counter
2. 16 IC modules
3. Peripheral Pin Select (PPS) to allow function remapping
4. Real Time Clock and Calendar (RTCC) module
3. High-speed PWM
1. Up to seven PWM pairs with independent timing
2. Dead time for rising and falling edges
3. 8.32 ns PWM resolution
4. PWM support
- DC/DC, AC/DC, inverter, PFC, lighting
- BLDC, PMSM, ACIM, SRM
5. Programmable fault input
6. Flexible trigger configuration for ADC conversions
4. Energy management
1. Low power management modes (sleep, idle, doze)
2. Integrated power-on reset and brown-out reset
3. 1.0 mA/MHz dynamic current (typ.)
4. 60 µA IPD current (typ)
5. Clock management
1. 2% internal oscillator
2. Programmable PLL and oscillator clock sources
3. Fail-Safe Clock Monitor (FSCM)
4. Independent watchdog timer
5. Quick wake up and start up
6. Core: 16-bit dsPIC33E/PIC24E CPU
1. Code efficient (C and assembly) architecture
2. Two 40-bit wide accumulators
3. Single cycle (MAC/MPY) with dual data acquisition
4. Single-cycle mixed-symbol MUL Plus hardware partitioning
5. 32-bit multiply support
7. Communication Interface
1. Full-speed interface compliant with USB 2.0 OTG standard
2. Four UART modules (15 Mbps)
- Supports LIN/J2602 protocol and IrDA®
3. Four 4-wire SPI modules (15 Mbps)
4. Two ECAN™ modules (1 Mbaud) CAN 2.0B support
5. Two SMBus capable I2C modules (up to 1 Mbaud)
6. Data Converter Interface (DCI) module that supports I2S and audio codecs
7. PPS allows function remapping
8. Parallel Master Port (PMP)
9. Programmable Cyclic Redundancy Check (CRC)
8. Input Output
1. Sink/source 10 mA on all pins
2. 5V tolerant pins
3. Optional open-drain, pull-up and pull-down
5. Overvoltage clamp current up to 5 mA
6. External interrupts on all I/O pins
9. Debugger development support
1. Online and in-app programming
2. Five program and three complex data breakpoints
3. IEEE 1149.2 Compliant (JTAG) Boundary Scan
4. Tracing and runtime monitoring
10. Application
1. Induction heating
2. Uninterruptible Power Supply (UPS)
3. DC/AC inverter
4. Compressor motor control
5. Washing machine three-phase motor control
6. BLDC motor control
7. Automotive HVAC, cooling fans, fuel pumps
8. Stepper motor control
9. Audio and fluid sensor monitoring
10. Camera lens focus and stabilization controls
11. Voice (playback, hands-free kit, answering machine, VoIP)
12. Consumer Audio
13. Industrial and building control (security systems and access control)
14. Bar code reading
15. Network: LAN switches, gateways
16. Data storage device management
17. Smart cards and smart card readers

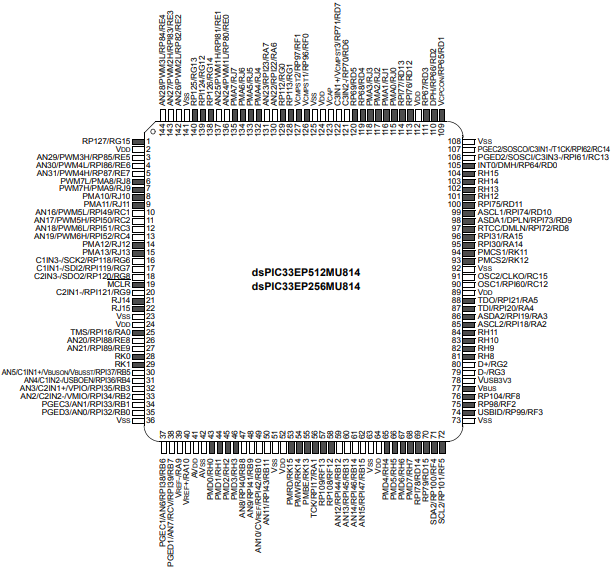

11. Pin configuration
