ESDALC6V1W5 Circuit Protection |
|
| Allicdata Part #: | 497-7231-2-ND |
| Manufacturer Part#: |
ESDALC6V1W5 |
| Price: | $ 2.11 |
| Product Category: | Circuit Protection |
| Manufacturer: | STMicroelectronics |
| Short Description: | TVS DIODE 3V SOT323-5 |
| More Detail: | N/A |
| DataSheet: |  ESDALC6V1W5 Datasheet/PDF |
| Quantity: | 33000 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| 1 +: | $ 2.11000 |
| 10 +: | $ 2.04670 |
| 100 +: | $ 2.00450 |
| 1000 +: | $ 1.96230 |
| 10000 +: | $ 1.89900 |
| Series: | ESDA, TRANSIL™ |
| Packaging: | Tape & Reel (TR) |
| Lead Free Status: | Lead free |
| RoHS Status: | RoHS Compliant |
| Lead Free Status / RoHS Status: | -- |
| Part Status: | Active |
| Moisture Sensitivity Level (MSL): | -- |
| Type: | Zener |
| Unidirectional Channels: | 4 |
| Bidirectional Channels: | -- |
| Voltage - Reverse Standoff (Typ): | 3V |
| Voltage - Breakdown (Min): | 6.1V |
| Voltage - Clamping (Max) @ Ipp: | -- |
| Current - Peak Pulse (10/1000µs): | -- |
| Power - Peak Pulse: | 25W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | -- |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package: | SOT-323-5 |
| Base Part Number: | ESDALC6V1 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
The ESDALC6V1W5 is a monolithic suppressor designed to protect components connected to data and transmission lines from ESD. These devices clamp voltages above positive transient logic level supplies and to diode drops below ground for negative transients.
2. Feature
1. 4 one-way Transil functions
2. Breakdown Voltage: VBR = 6.1 V minimum
3. Low leakage current: < 1 µA
4. Low capacitance: 7.5 pF at 3 V
5. Very small PCB area typically < 4.2 mm2
3. Application
1. computer
2. Printer
3. Communication system
4. Mobile phones and accessories
5. Wired and cordless telephones
6. Set-top box
4. Benefit
1. High ESD protection level: up to 25 kV
2. High integration

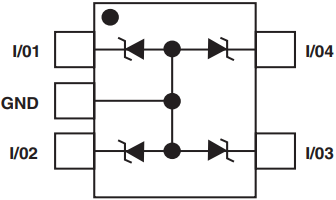

5. Pin configuration

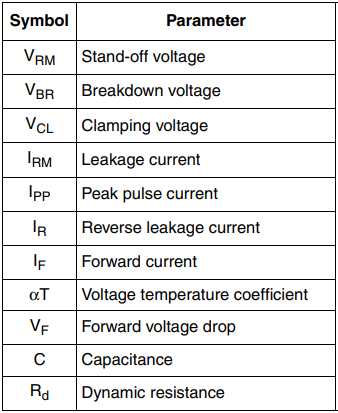

6. Electrical Characteristics

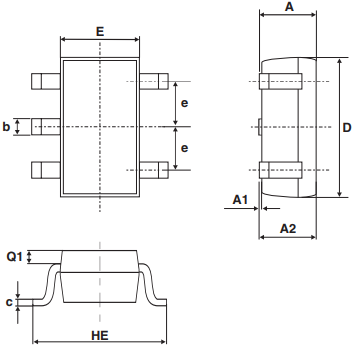

7. Packaging overview
