| Allicdata Part #: | 497-2963-2-ND |
| Manufacturer Part#: |
LF347DT |
| Price: | $ 0.00 |
| Product Category: | Integrated Circuits (ICs) |
| Manufacturer: | STMicroelectronics |
| Short Description: | IC OPAMP JFET 4MHZ 14SOJ-FET Amplifier 4 Circuit &... |
| More Detail: | N/A |
| DataSheet: |  LF347DT Datasheet/PDF |
| Quantity: | 2500 |
| Series: | LF347 |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Amplifier Type: | J-FET |
| Number of Circuits: | 4 |
| Output Type: | Dual |
| Slew Rate: | 16 V/µs |
| Gain Bandwidth Product: | 4MHz |
| -3db Bandwidth: | -- |
| Current - Input Bias: | 20pA |
| Voltage - Input Offset: | 3mV |
| Current - Supply: | 1.4mA |
| Current - Output / Channel: | 40mA |
| Voltage - Supply, Single/Dual (±): | 8 V ~ 36 V, ±4 V ~ 18 V |
| Operating Temperature: | 0°C ~ 70°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 14-SO |
| Base Part Number: | LF347 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
These circuits are high-speed J-FET input four-way Contains a well-matched operational amplifier, High voltage J-FET and bipolar transistor Monolithic integrated circuits. These devices have high slew rate and low input bias And offset current, and low offset voltage temperature coefficient.
2. Feature
1. Low power consumption
2. Wide common mode (up to VCC+) and Differential voltage range
3. Low input bias and offset current
4. Output short circuit protection
5. High input impedance J-FET input stage
6. Internal frequency compensation
7. Latch-free operation
8. High slew rate: 16V/µs (typical value)

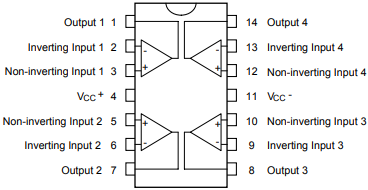

3. Pin connection

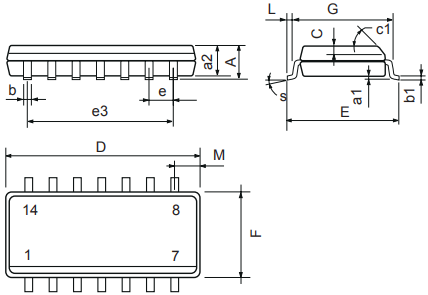

4. Package overview
| Part Number | Manufacturer | Price | Quantity | Description |
|---|
| LF347BDR | Texas Instru... | -- | 1000 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347DRG4 | Texas Instru... | 0.18 $ | 1000 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347BNG4 | Texas Instru... | 0.22 $ | 1000 | IC OPAMP JFET 3MHZ 14DIPJ... |
| LF347NG4 | Texas Instru... | 0.22 $ | 1000 | IC OPAMP JFET 3MHZ 14DIPJ... |
| LF347DE4 | Texas Instru... | 0.23 $ | 1000 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347DG4 | Texas Instru... | 0.23 $ | 1000 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347N/PB | Texas Instru... | 0.0 $ | 1000 | IC OPAMP JFET 4MHZ 14DIPJ... |
| LF347BN/PB | Texas Instru... | 0.0 $ | 1000 | IC OPAMP JFET 4MHZ 14DIPJ... |
| LF347DT | STMicroelect... | -- | 2500 | IC OPAMP JFET 4MHZ 14SOJ-... |
| LF347M/NOPB | Texas Instru... | -- | 2911 | IC OPAMP JFET 4MHZ 14SOIC... |
| LF347N | Texas Instru... | -- | 33 | IC OPAMP JFET 3MHZ 14DIPJ... |
| LF347BN | Texas Instru... | -- | 3459 | IC OPAMP JFET 3MHZ 14DIPJ... |
| LF347MX/NOPB | Texas Instru... | -- | 1000 | IC OPAMP JFET 4MHZ 14SOIC... |
| LF347M | Texas Instru... | -- | 1610 | IC OPAMP JFET 4MHZ 14SOIC... |
| LF347BD | Texas Instru... | -- | 2295 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347DR | Texas Instru... | -- | 1229 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347D | Texas Instru... | -- | 274 | IC OPAMP JFET 3MHZ 14SOIC... |
| LF347BN/NOPB | Texas Instru... | -- | 886 | IC OPAMP JFET 4MHZ 14DIPJ... |
| LF347N/NOPB | Texas Instru... | -- | 1000 | IC OPAMP JFET 4MHZ 14DIPJ... |
| LF347MX | Texas Instru... | -- | 1000 | IC OPAMP JFET 4MHZ 14SOIC... |
