LM358DMR2

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

Utilize the perfect circuit design for Quad Operational Amplifiers, these dual operational amplifiers have low power consumption, The common mode input voltage range is extended to ground/VEE, and Single power supply or sub-power operation. LM358DMR2 series is It is equivalent to one-half of LM324. Compared with standard amplifiers, these amplifiers have several obvious advantages Type of operational amplifier in single-supply applications. They can Can operate at a supply voltage as low as 3.0 V or as high as 32 V, with About one-fifth of the quiescent current and MC1741 (based on each amplifier). Common mode input range Including negative power supply, thus eliminating External biasing components in many applications. The output voltage range also includes negative supply voltage.

2. Feature

    1. Short circuit protection output

    2. True differential input stage

    3. Single power supply operation: 3.0 V to 32 V

    4. Low input bias current

    5. Internal compensation

    6. The common mode range is extended to the negative power supply

    7. Single and split power operation

    8. The ESD clamp at the input improves the robustness of the device Does not affect operation

    9. NCV prefix used for automotive and other needs Unique site and control change requirements; AEC-Q100 Qualified and capable of PPAP

  10. These devices are lead-free, halogen-free/BFR-free and RoHS compliant Compliance

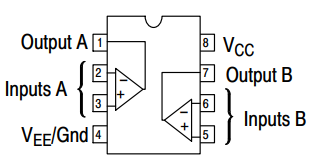

3. PIN CONNECTIONS

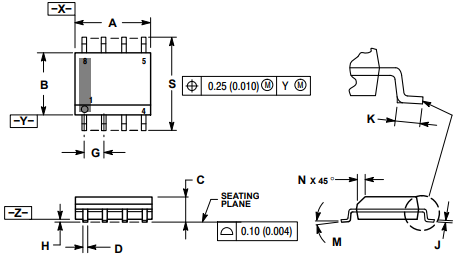

4. PACKAGE DIMENSIONS
