LM8365BALMF27/NOPB Integrated Circuits (ICs) |
|
Allicdata Part #: | LM8365BALMF27/NOPBTR-ND |
Manufacturer Part#: |
LM8365BALMF27/NOPB |
Price: | $ 0.00 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Texas Instruments |
Short Description: | IC DETECT UNDERVOLT 2.7V SOT23-5Supervisor Open Dr... |
More Detail: | N/A |
DataSheet: | LM8365BALMF27/NOPB Datasheet/PDF |
Quantity: | 20000 |
Series: | LM8365 |
Packaging: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Simple Reset/Power-On Reset |
Number of Voltages Monitored: | 1 |
Output: | Open Drain or Open Collector |
Reset: | Active Low |
Reset Timeout: | Adjustable/Selectable |
Voltage - Threshold: | 2.7V |
Operating Temperature: | -40°C ~ 85°C (TA) |
Mounting Type: | Surface Mount |
Package / Case: | SC-74A, SOT-753 |
Supplier Device Package: | SOT-23-5 |
Base Part Number: | LM8365 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
The LM8365BALMF27 device is a micropower undervoltage sensing circuit that is ideal for use in battery-powered microprocessor based systems, where extended battery life is a key requirement. Threshold voltages of 2.7 V and 4.5 V are available with an active-low, open-drain output. These devices feature a very-low quiescent current of 0.65 µA typical. The LM8365 features a highly accurate voltage reference, a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation, a time delayed output which can be programmed by the system designer, and specified Reset operation down to 1 V with extremely-low standby current.
2. Features
1. Extremely-Low Quiescent Current: 0.62 μA at VIN = 2.6 V
2. High Accuracy Threshold Voltage (±2.5%)
3. Open-Drain Output
4. Programmable Output Delay by External Capacitor (130 ms Typical With 0.1 μF)
5. Input Voltage Range: 1 V to 6 V
6. Pin-for-Pin Compatible With MC33465
3. Pin Configuration

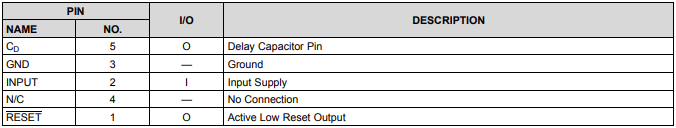

4. Pin Functions

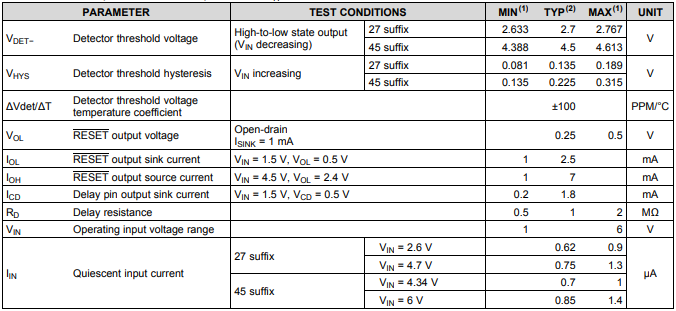

5. Electrical Characteristics
6. Applications
1. Portable Electronics
2. Low-Battery Detection
3. Microprocessor Reset Controllers
4. Power Fail Indicators
5. Battery Backup Detection
7. Package overview
