Allicdata Part #: | 296-37035-2-ND |
Manufacturer Part#: |
LMZ31710RVQT |
Price: | $ 0.00 |
Product Category: | Power Supplies - Board Mount |
Manufacturer: | Texas Instruments |
Short Description: | DC/DC CONVERTER 0.6-5.5V 55WNon-Isolated PoL Modul... |
More Detail: | N/A |
DataSheet: | LMZ31710RVQT Datasheet/PDF |
Quantity: | 4000 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Series: | SIMPLE SWITCHER® |
Packaging: | Tape & Reel (TR) |
Lead Free Status / RoHS Status: | -- |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Type: | Non-Isolated PoL Module |
Number of Outputs: | 1 |
Voltage - Input (Min): | 2.95V |
Voltage - Input (Max): | 17V |
Voltage - Output 1: | 0.6 ~ 5.5 V |
Voltage - Output 2: | -- |
Voltage - Output 3: | -- |
Voltage - Output 4: | -- |
Current - Output (Max): | 10A |
Power (Watts): | -- |
Applications: | ITE (Commercial) |
Voltage - Isolation: | -- |
Features: | OCP, OTP, UVLO |
Operating Temperature: | -40°C ~ 85°C |
Efficiency: | 94% |
Mounting Type: | Surface Mount |
Package / Case: | 42-BQFN Module |
Size / Dimension: | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) |
Control Features: | Enable, Active High |
Supplier Device Package: | 42-B3QFN (10x10) |
Base Part Number: | LMZ31710 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
The LMZ31710RVQT power module is an easy-to-use integrated power solution that combines a 10-A DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low-profile QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. The 10 × 10 × 4.3 mm QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design. The device achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31710 offers the flexibility and the feature set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
2. Features
1. Complete integrated power solution
– Small footprint, low-profile design
– Pin compatible with LMZ31707 and LMZ31704
– 10-mm × 10-mm × 4.3-mm package
2. Efficiencies up to 95%
3. Eco-Mode™ and light load efficiency (LLE)
4. Wide-output voltage adjust 0.6 V to 5.5 V, With 1% reference accuracy
5. Supports parallel operation for higher current
6. Optional split power rail allows input voltage down to 2.95 V
7. Adjustable switching frequency (200 kHz to 1.2 MHz)
8. Synchronizes to an external clock
9. Provides 180° out-of-phase clock signal
10. Adjustable slow start
11. Output voltage sequencing and tracking
12. Power-good output
13. Programmable undervoltage lockout (UVLO)
14. Overcurrent and overtemperature protection
15. Prebias output start-up
16. Operating temperature range: –40°C to +85°C
17. Enhanced thermal performance: 13.3°C/W
18. Meets EN55022 Class B emissions
- integrated shielded inductor
19. Create a custom design using the LMZ31710 with the WEBENCH® Power Designer
3. Applications
1. Broadband and communications infrastructure
2. Automated test and medical equipment
3. Compact PCI / PCI Express / PXI express
4. DSP and FPGA point-of-load applications
4. Pin Configuration

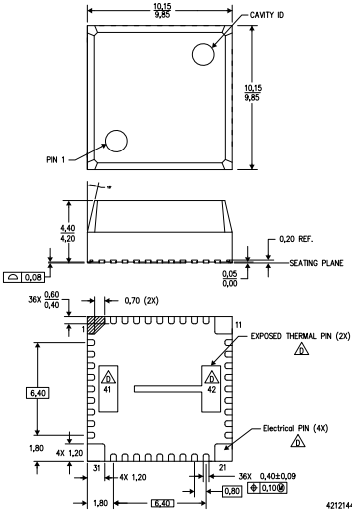

5. Package overview
