1. Special Microcontroller Features:

    1. Precision Internal Oscillator:

        - Factory calibrated to ±1%, typical

        - Software selectable frequency range of 8 MHz to 125 kHz

        - Software tunable

        - Two-Speed Start-up mode

        - Crystal fail detect for critical applications

        - Clock mode switching during operation for power savings

    2. Power-Saving Sleep mode

    3. Wide operating voltage range (2.0V-5.5V)

    4. Industrial and Extended temperature range

    5. Power-on Reset (POR)

    6. Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

    7. Brown-out Reset (BOR) with software control option

    8. Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable

    9. Multiplexed Master Clear with pull-up/input pin

  10. Programmable code protection

  11. High Endurance Flash/EEPROM cell:

        - 100,000 write Flash endurance

        - 1,000,000 write EEPROM endurance

        - Flash/Data EEPROM Retention: > 40 years

2. Peripheral Features

    1. 6 I/O pins with individual direction control:

        - High current source/sink for direct LED drive

        - Interrupt-on-pin change

        - Individually programmable weak pull-ups

        - Ultra Low-Power Wake-up on GP0

    2. Analog Comparator module with:

        - One analog comparator

        - Programmable on-chip voltage reference (CVREF) module (% of VDD)

        - Comparator inputs and output externally accessible

    3. A/D Converter:

        - 10-bit resolution and 4 channels

    4. Timer0: 8-bit timer/counter with 8-bit programmable prescaler

    5. Enhanced Timer1:

        - 16-bit timer/counter with prescaler

        - External Timer1 Gate (count enable)

        - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator if INTOSC mode selected

    6. Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

    7. Capture, Compare, PWM module:

        - 16-bit Capture, max resolution 12.5 ns

        - Compare, max resolution 200 ns

        - 10-bit PWM, max frequency 20 kHz

    8. In-Circuit Serial Programming™ (ICSP™) via two pins

3. High-Performance RISC CPU

    1. Only 35 instructions to learn:

        - All single-cycle instructions except branches

    2. Operating speed:

        - DC – 20 MHz oscillator/clock input

        - DC – 200 ns instruction cycle

    3. Interrupt capability

    4. 8-level deep hardware stack

    5. Direct, Indirect and Relative Addressing modes

4. Low-Power Features

    1. Standby Current:

        - 50 nA @ 2.0V, typical

    2. Operating Current:

        - 11 μA @ 32 kHz, 2.0V, typical

        - 220 μA @ 4 MHz, 2.0V, typical

    3. Watchdog Timer Current:

        - 1 μA @ 2.0V, typical

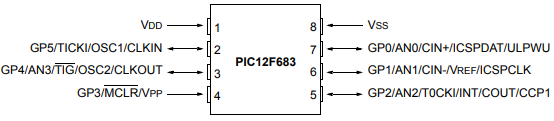

5. Pin configuration

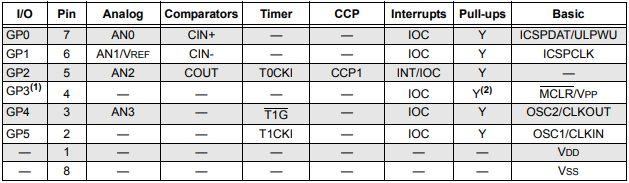

6. Pin description

7. Overview

The Oscillator module has a wide variety of clock sources and selection features that allow it to be used in a wide range of applications while maximizing performance and minimizing power consumption. illustrates a block diagram of the Oscillator module. Clock sources can be configured from external oscillators, quartz crystal resonators, ceramic resonators and Resistor-Capacitor (RC) circuits. In addition, the system clock source can be configured from one of two internal oscillators, with a choice of speeds selectable via software. Additional clock features include:

    1. Selectable system clock source between external or internal via software.

    2. Two-Speed Start-up mode, which minimizes latency between external oscillator start-up and code execution.

    3. Fail-Safe Clock Monitor (FSCM) designed to detect a failure of the external clock source (LP, XT, HS, EC or RC modes) and switch automatically to the internal oscillatorThe Oscillator module can be configured in one of eight clock modes.

    4. EC – External clock with I/O on OSC2/CLKOUT.

    5. LP – 32 kHz Low-Power Crystal mode.

    6. XT – Medium Gain Crystal or Ceramic Resonator Oscillator mode.

    7. HS – High Gain Crystal or Ceramic Resonator mode.

    8. RC – External Resistor-Capacitor (RC) with FOSC/4 output on OSC2/CLKOUT.

    9. RCIO – External Resistor-Capacitor (RC) with I/O on OSC2/CLKOUT.

  10. INTOSC – Internal oscillator with FOSC/4 output on OSC2 and I/O on OSC1/CLKIN.

  11. INTOSCIO – Internal oscillator with I/O on OSC1/CLKIN and OSC2/CLKOUT.

Clock Source modes are configured by the FOSC<2:0> bits in the Configuration Word register (CONFIG). The internal clock can be generated from two internal oscillators. The HFINTOSC is a calibrated high-frequency oscillator. The LFINTOSC is an uncalibrated low-frequency oscillator.
