Allicdata Part #: | 1016-1305-5-ND |
Manufacturer Part#: |
XR2206CP-F |
Price: | $ 0.00 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | MaxLinear, Inc. |
Short Description: | IC FUNCTION GENERATOR 16DIP |
More Detail: | N/A |
DataSheet: | XR2206CP-F Datasheet/PDF |
Quantity: | 1000 |
Lead Free Status / RoHS Status: | |
Moisture Sensitivity Level (MSL): |
Series: | XR2206 |
Packaging: | Tube |
Lead Free Status / RoHS Status: | -- |
RoHS Status: | -- |
Part Status: | Obsolete |
Moisture Sensitivity Level (MSL): | -- |
Type: | Function Generator |
PLL: | No |
Input: | TTL |
Output: | TTL |
Number of Circuits: | 1 |
Ratio - Input:Output: | 2:4 |
Differential - Input:Output: | No/No |
Frequency - Max: | 1MHz |
Divider/Multiplier: | Yes/Yes |
Voltage - Supply: | 10 V ~ 26 V |
Operating Temperature: | 0°C ~ 70°C |
Mounting Type: | Through Hole |
Package / Case: | 16-DIP (0.300", 7.62mm) |
Supplier Device Package: | 16-PDIP |
Base Part Number: | XR2206CP |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
XR2206CP-F is a monolithic function generator Can produce high-quality sinusoidal integrated circuits, Square wave, triangle wave, ramp wave and pulse waveform High stability and accuracy. The output waveform can be Both amplitude and frequency are externally modulated Voltage. Optional working frequency The outside is in the range of 0.01 Hz to above 1 MHz. This circuit is very suitable for communication, Meter and function generator applications Requires sine tone, AM, FM or FSK generation. it Its typical drift specification is 20ppm/°C. Oscillator Frequency can be linearly swept 2000:1 Holding range and external control voltage Low distortion.
2. Feature
1. Low sine wave distortion, 0.5%, typical
2. Excellent temperature stability, 20ppm/°C, typical value.3.
3. Wide scanning range, 2000:1, typical
4. Low power supply sensitivity, 0.01%V, typical value.
5. Linear amplitude modulation
6. TTL compatible FSK control
7. Wide power supply range, 10V to 26V
8. Adjustable duty cycle, 1% to 99%
3. Application
1. Waveform generation
2. Scan generation
3. AM/FM generation
4. V/F conversion
5. FSK generation
6. Phase Locked Loop (VCO)

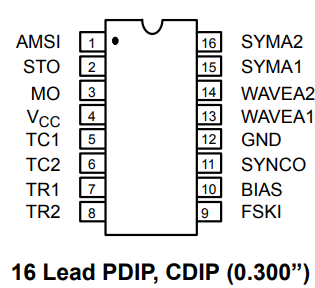

4. Pin configuration

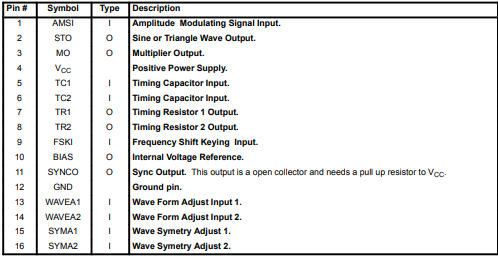

5. Pin description
6. System specification
XR-2206 is composed of four functional blocks; one Voltage controlled oscillator (VCO), analog multiplier And sine shaper; unity gain buffer amplifier; and a set Current switch. The output frequency produced by the VCO is Input current, which is set by a resistor from the sequence The terminal is grounded. With two timing pins, two discrete Output frequency can be generated independently An application that uses FSK input to generate FSK Control pin. This input controls the current switch Choose one of the timing resistor currents and route it to VCO.
