1.5SMC30AT3 Circuit Protection

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

The SMC series is designed to protect voltage sensitive The components come from high voltage, high energy transients. they have Excellent clamping capability, high surge capability, low Zener Impedance and fast response time. The SMC series is available in ON Semiconductor’s exclusive, cost-effective, and highly reliable products Surmetic™ package, very suitable for communication System, automotive, CNC, process control, medical Equipment, business machines, power supplies and many others Industrial/consumer applications.

2. Specifications and characteristics:

    1. The operating peak reverse voltage range is 5.8 to 77.8 V

    2. The standard Zener breakdown voltage range is 6.8 to 91 V

    3. Peak power – 1500 watts @ 1 ms

    4. The ESD level of each human body model is level 3 (> 16 KV)

    5. Maximum clamping voltage@peak pulse current

    6. Low leakage current above 10 V <5 µA

    7. UL 497B is used for isolated circuit protection

    8. Specified highest temperature coefficient

    9. Response time is usually <1 ns

3. Mechanical characteristics:

    1. Case: No voids, transfer molding, thermosetting plastic

    2. Finishing: all outer surfaces are corrosion-resistant and lead wires Easy to solder

    3. Maximum shell temperature for welding: 260°C for 10 seconds

    4. Pin: Improved L-shaped elbow provides more contact area with the pad

    5. Polarity: The cathode is indicated by a molded polarity notch

    6. Installation location: Any

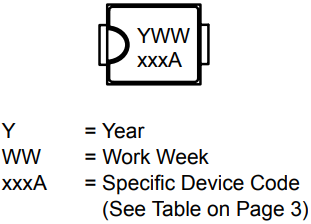

4. Pin configuration information

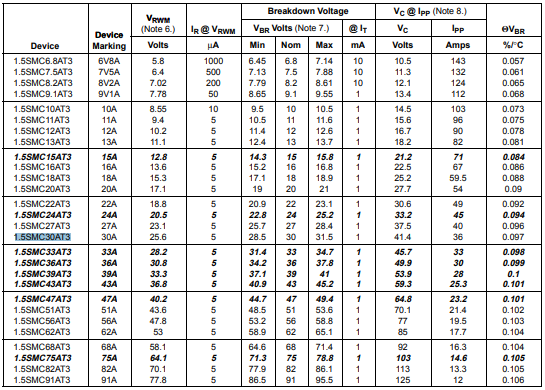

5. ELECTRICAL CHARACTERISTICS

6. Product Size
