SZNUP2105LT1G Circuit Protection

1. Description

SZ/NUP2105L is designed to protect CAN Transceivers in ESD and high-speed networks Other harmful transient voltage events. The device provides A single compact provides bidirectional protection for each data line SOT-23 package provides a low-cost option for system designers Improve system reliability and meet strict EMI requirements.

2. MARKING DIAGRAM

3. Features

    1. 350 W Peak Power Dissipation per Line (8/20 sec Waveform)

    2. Low Reverse Leakage Current (< 100 nA)

    3. Low Capacitance High−Speed CAN Data Rates

    4. IEC Compatibility:

         − IEC 61000−4−2 (ESD): Level 4, 30 kV

         − IEC 61000−4−4 (EFT): 40 A – 5/50 ns

         − IEC 61000−4−5 (Lighting) 8.0 A (8/20 s)

    5. ISO 7637−2 Pulse 2a: Repetitive Load Switch Disconnect, 9.5 A

    6. ISO 7637−3 Pulse 3a,b: Repetitive Load Switching Fast Transients, 50 A

    7. Flammability Rating UL 94 V−0

    8. SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

    9. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

4. Applications

    1. Industrial Control Networks

        - Smart Distribution Systems (SDS®)

        - DeviceNet™

    2. Automotive Networks

         - Low and High−Speed CAN

         - Fault Tolerant CAN

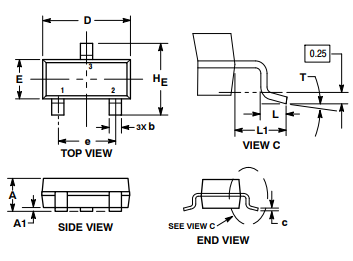

5. PACKAGE DIMENSIONS
