| Allicdata Part #: | 493-1927-ND |
| Manufacturer Part#: |
UPW1J100MDD |
| Price: | $ 0.12 |
| Product Category: | Capacitors |
| Manufacturer: | Nichicon |
| Short Description: | CAP ALUM 10UF 20% 63V RADIAL10µF 63V Aluminum Elec... |
| More Detail: | N/A |
| DataSheet: |  UPW1J100MDD Datasheet/PDF |
| Quantity: | 3802 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| 1 +: | $ 0.10800 |
| 10 +: | $ 0.07335 |
| 100 +: | $ 0.04145 |
| 500 +: | $ 0.02926 |
| 1000 +: | $ 0.02560 |
| 2500 +: | $ 0.02438 |
| 5000 +: | $ 0.02255 |
Specifications
| Series: | UPW |
| Packaging: | Bulk |
| Lead Free Status / RoHS Status: | -- |
| RoHS Status: | -- |
| Part Status: | Active |
| Moisture Sensitivity Level (MSL): | -- |
| Capacitance: | 10µF |
| Tolerance: | ±20% |
| Voltage - Rated: | 63V |
| ESR (Equivalent Series Resistance): | -- |
| Lifetime @ Temp.: | 2000 Hrs @ 105°C |
| Operating Temperature: | -55°C ~ 105°C |
| Polarization: | Polar |
| Ratings: | -- |
| Applications: | General Purpose |
| Ripple Current @ Low Frequency: | 33mA @ 120Hz |
| Ripple Current @ High Frequency: | -- |
| Lead Spacing: | 0.079" (2.00mm) |
| Impedance: | 2.1 Ohms |
| Size / Dimension: | 0.197" Dia (5.00mm) |
| Height - Seated (Max): | 0.433" (11.00mm) |
| Surface Mount Land Size: | -- |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Can |
Description
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Feature
1. Compared with UPM, the housing size is smaller and the impedance is lower.
2. Can withstand 2000 hours to 8000 hours of low impedance and high reliability.
3. The available capacitance range is based on the values in the E12 series According to JIS.
4. Comply with RoHS directive (2011/65/EU, (EU) 2015/863).
5. Comply with AEC-Q200.
2. Radial Lead Type

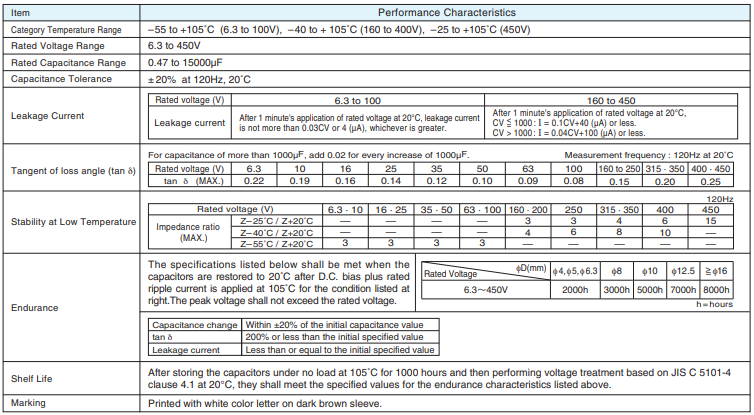

3. Specifications
