| Allicdata Part #: | 493-15914-ND |
| Manufacturer Part#: |
URS1V101MPD |
| Price: | $ 0.23 |
| Product Category: | Capacitors |
| Manufacturer: | Nichicon |
| Short Description: | CAP ALUM 100UF 20% 35V RADIAL100µF 35V Aluminum El... |
| More Detail: | N/A |
| DataSheet: |  URS1V101MPD Datasheet/PDF |
| Quantity: | 1876 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| 1 +: | $ 0.20250 |
| 10 +: | $ 0.14220 |
| 100 +: | $ 0.09365 |
| 500 +: | $ 0.06936 |
| 1000 +: | $ 0.05896 |
| 2500 +: | $ 0.05549 |
| 5000 +: | $ 0.05202 |
Specifications
| Series: | URS |
| Packaging: | Bulk |
| Lead Free Status / RoHS Status: | -- |
| RoHS Status: | -- |
| Part Status: | Active |
| Moisture Sensitivity Level (MSL): | -- |
| Capacitance: | 100µF |
| Tolerance: | ±20% |
| Voltage - Rated: | 35V |
| ESR (Equivalent Series Resistance): | -- |
| Lifetime @ Temp.: | 2000 Hrs @ 85°C |
| Operating Temperature: | -40°C ~ 85°C |
| Polarization: | Polar |
| Ratings: | -- |
| Applications: | General Purpose |
| Ripple Current @ Low Frequency: | 220mA @ 120Hz |
| Ripple Current @ High Frequency: | 330mA @ 10kHz |
| Lead Spacing: | 0.138" (3.50mm) |
| Impedance: | -- |
| Size / Dimension: | 0.315" Dia (8.00mm) |
| Height - Seated (Max): | 0.413" (10.50mm) |
| Surface Mount Land Size: | -- |
| Mounting Type: | Through Hole |
| Package / Case: | Radial, Can |
Description
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com

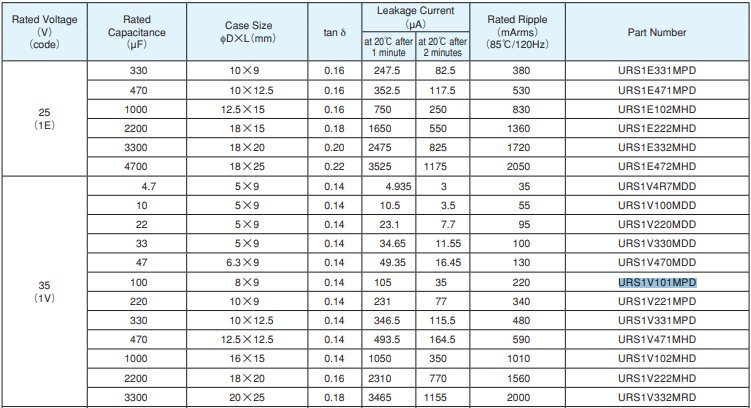

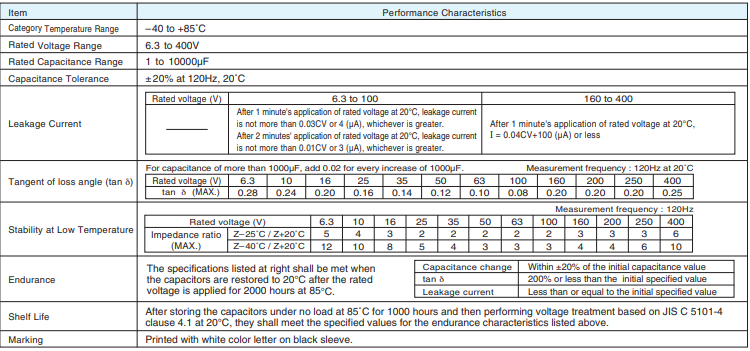

1. Specifications
2. Packaging Information

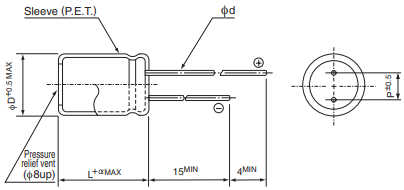

3. Dimensions
