| Allicdata Part #: | BC807-16LT1GOSTR-ND |
| Manufacturer Part#: |
BC807-16LT1G |
| Price: | $ 0.01 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | ON Semiconductor |
| Short Description: | TRANS PNP 45V 0.5A SOT-23Bipolar (BJT) Transistor ... |
| More Detail: | N/A |
| DataSheet: |  BC807-16LT1G Datasheet/PDF |
| Quantity: | 36000 |
| 1 +: | $ 0.00800 |
| 10 +: | $ 0.00776 |
| 100 +: | $ 0.00760 |
| 1000 +: | $ 0.00744 |
| 10000 +: | $ 0.00720 |
Specifications
| Series: | -- |
| Packaging: | Tape & Reel (TR) |
| FET Type: | -- |
| Part Status: | Active |
| Technology: | -- |
| Transistor Type: | PNP |
| Drain to Source Voltage (Vdss): | -- |
| Current - Collector (Ic) (Max): | 500mA |
| Current - Continuous Drain (Id) @ 25°C: | -- |
| Voltage - Collector Emitter Breakdown (Max): | 45V |
| Drive Voltage (Max Rds On, Min Rds On): | -- |
| Vce Saturation (Max) @ Ib, Ic: | 700mV @ 50mA, 500mA |
| Rds On (Max) @ Id, Vgs: | -- |
| Current - Collector Cutoff (Max): | 100nA (ICBO) |
| Vgs(th) (Max) @ Id: | -- |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 100mA, 1V |
| Gate Charge (Qg) (Max) @ Vgs: | -- |
| Power - Max: | 300mW |
| Vgs (Max): | -- |
| Frequency - Transition: | 100MHz |
| Input Capacitance (Ciss) (Max) @ Vds: | -- |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| FET Feature: | -- |
| Mounting Type: | Surface Mount |
| Power Dissipation (Max): | -- |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 (TO-236) |
| Base Part Number: | BC807 |
Description
1. description
BC807-16LT1G is a PNP silicon general-purpose transistor with a voltage of 45 V, and it is packaged in SOT-23.
2. Features
1. Suitable for cars and other requirements unique prefix Site and control change requirements; Pass AEC-Q101 certification and With PPAP
2. These devices are lead-free, halogen-free/brominated flame retardant and RoHS compliant Compliance

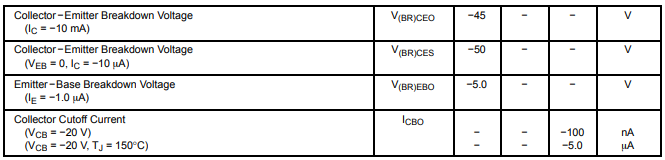

3. OFF CHARACTERISTICS

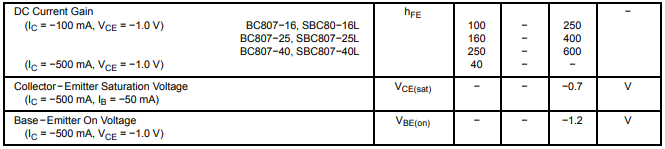

4. ON CHARACTERISTICS

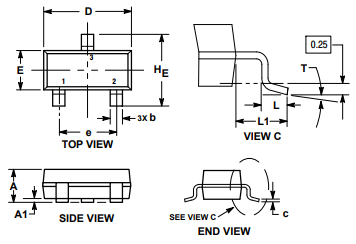

5. PACKAGE DIMENSIONS
