Allicdata Part #: | 296-44591-2-ND |
Manufacturer Part#: |
DRV8313RHHR |
Price: | $ 5.09 |
Product Category: | Integrated Circuits (ICs) |
Manufacturer: | Texas Instruments |
Short Description: | IC MOTOR DRIVER PAR 36VQFNMotor Driver Power MOSFE... |
More Detail: | N/A |
DataSheet: | DRV8313RHHR Datasheet/PDF |
Quantity: | 2500 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
1 +: | $ 5.09000 |
Series: | DRV8313 |
Packaging: | Tape & Reel (TR) |
Lead Free Status / RoHS Status: | -- |
Lead Free Status: | Lead free |
Part Status: | Active |
Moisture Sensitivity Level (MSL): | -- |
Motor Type - Stepper: | -- |
Motor Type - AC, DC: | Brushless DC (BLDC) |
Function: | Driver - Fully Integrated, Control and Power Stage |
Output Configuration: | Half Bridge (3) |
Interface: | Parallel |
Technology: | Power MOSFET |
Step Resolution: | -- |
Applications: | General Purpose |
Current - Output: | -- |
Voltage - Supply: | 8 V ~ 60 V |
Voltage - Load: | 8 V ~ 60 V |
Operating Temperature: | -40°C ~ 150°C (TJ) |
Mounting Type: | Surface Mount |
Package / Case: | 36-VFQFN Exposed Pad |
Supplier Device Package: | 36-VQFN (6x6) |
Base Part Number: | DRV8313 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
The DRV8313RHHR provides three independently controllable half H-bridge drivers. The device is designed to drive a three-phase brushless DC motor, although it can also be used to drive solenoids or other loads. Each output drive channel consists of N-channel power MOSFETs configured in a 1/2-H bridge configuration. Each 1/2-H bridge driver has a dedicated ground terminal which allows independent external current sensing. An uncommitted comparator is integrated into the DRV8313RHHR, which allows the construction of current limiting circuits or other functions. Provides internal protection Undervoltage, charge pump failure, overcurrent, short circuit circuit and overheating. The fault condition is Indicated by the nFAULT pin.
2. Feature
1. Triple 1/2-H bridge driver IC
– Three-phase brushless DC motor
– Solenoid and brushed DC motors
2. High current drive capability: 2.5A peak
3. Low MOSFET on-resistance
4. Independent 1/2-H bridge control
5. Uncommitted comparators can be used for current limiting or other functions
6. Built-in 3.3V 10mA LDO regulator
7. 8V to 60V operating supply voltage range
8. Sleep mode for standby operation
9. Small package and footprint
– 28-pin HTSSOP (PowerPAD™ package)
– 36-pin VQFN
3. Application
1. Camera head
2. HVAC motors
3. Office automation machines
4. Factory automation and robotics

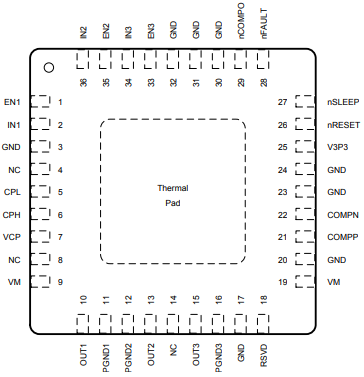

4. Pin configuration
