MURA220T3G

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Features

    1. Small Compact Surface Mountable Package with J−Bend Leads

    2. Rectangular Package for Automated Handling

    3. High Temperature Glass Passivated Junction

    4. Low Forward Voltage Drop (0.77 V Max @ 2.0 A, TJ = 150°C)

    5. Low Forward Voltage Drop (0.71 V Max @ 1.0 A, TJ = 150°C)

    6. NRVUA and SURA8 Prefixes for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*

    7. These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

2. Describe

        Very suitable for high-voltage, high-frequency rectification, or as Freewheeling and protection diodes in surface mount applications Compact size and weight are critical to the system.

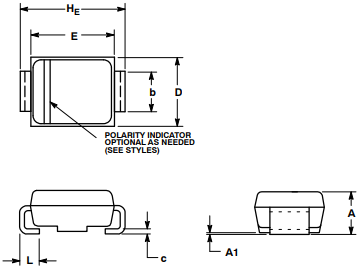

3. Package dimensions

4. Mechanical Characteristics

    1. Case: Epoxy, Molded

    2. Weight: 70 mg (Approximately)

    3. Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

    4. Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

    5. Polarity: Polarity Band Indicates Cathode Lead

    6. ESD Protection:

        - Human Body Model > 4000 V (Class 3)

        - Machine Model > 400 V (Class C)

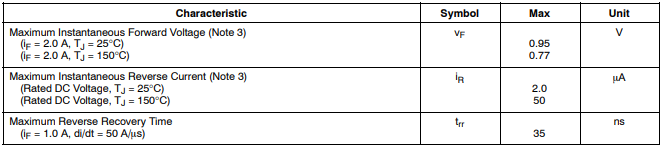

5. Electrical characteristics
