| Allicdata Part #: | BAS40LPDITR-ND |
| Manufacturer Part#: |
BAS40LP-7 |
| Price: | $ 0.09 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Diodes Incorporated |
| Short Description: | DIODE SCHOTTKY 40V 200MA 2DFNDiode Schottky 40V 20... |
| More Detail: | N/A |
| DataSheet: |  BAS40LP-7 Datasheet/PDF |
| Quantity: | 126694 |
| 1 +: | $ 0.09000 |
| 10 +: | $ 0.08730 |
| 100 +: | $ 0.08550 |
| 1000 +: | $ 0.08370 |
| 10000 +: | $ 0.08100 |
| Series: | BAS40LP |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| Diode Type: | Schottky |
| Type: | Schottky Diode |
| Voltage - DC Reverse (Vr) (Max): | 40V |
| Unidirectional Channels: | -- |
| Current - Average Rectified (Io): | 200mA (DC) |
| Voltage - Reverse Standoff (Typ): | -- |
| Voltage - Forward (Vf) (Max) @ If: | 1V @ 40mA |
| Voltage - Breakdown (Min): | -- |
| Speed: | Small Signal = |
| Voltage - Clamping (Max) @ Ipp: | -- |
| Reverse Recovery Time (trr): | 5ns |
| Current - Peak Pulse (10/1000µs): | -- |
| Current - Reverse Leakage @ Vr: | 200nA @ 30V |
| Power - Peak Pulse: | -- |
| Capacitance @ Vr, F: | 5pF @ 0V, 1MHz |
| Power Line Protection: | -- |
| Mounting Type: | Surface Mount |
| Applications: | -- |
| Package / Case: | 0402 (1006 Metric) |
| Capacitance @ Frequency: | -- |
| Supplier Device Package: | X1-DFN1006-2 |
| Operating Temperature: | - 55 C +125 C |
| Operating Temperature - Junction: | -55°C ~ 125°C |
| Base Part Number: | BAS40LP |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Features
1. Low Forward Voltage Drop
2. Fast Switching
3. Ultra-Small Leadless Surface Mount Package
4. PN Junction Guard Ring for Transient And ESD Protection
5. Totally Lead-Free & Fully RoHS Compliant
6. Halogen and Antimony Free. “Green” Device
2. Mechanical Data
1. Package: X1-DFN1006-2
2. Package Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminal Connections: See Marking Information
5. Terminals: Finish - NiPdAu Annealed over Copper Leadframe. Solderable per MIL-STD-202, Method 208
6. Weight: 0.001 grams (Approximate)

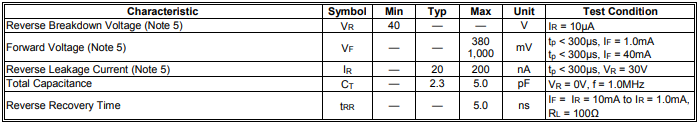

3. Electrical Characteristics
