| Allicdata Part #: | LM360N/NOPB-ND |
| Manufacturer Part#: |
LM360N/NOPB |
| Price: | $ 0.00 |
| Product Category: | Integrated Circuits (ICs) |
| Manufacturer: | Texas Instruments |
| Short Description: | IC COMPARATOR HS DIFF 8-DIPComparator Differential... |
| More Detail: | N/A |
| DataSheet: |  LM360N/NOPB Datasheet/PDF |
| Quantity: | 3300 |
| Lead Free Status / RoHS Status: | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Series: | LM360 |
| Packaging: | Tube |
| Lead Free Status / RoHS Status: | -- |
| Part Status: | Obsolete |
| Moisture Sensitivity Level (MSL): | -- |
| Type: | Differential |
| Number of Elements: | 1 |
| Output Type: | Complementary, TTL |
| Voltage - Supply, Single/Dual (±): | ±4.5 V ~ 6.5 V |
| Voltage - Input Offset (Max): | 5mV |
| Current - Input Bias (Max): | 20µA |
| Current - Output (Typ): | 20mA |
| Current - Quiescent (Max): | 32mA |
| CMRR, PSRR (Typ): | -- |
| Propagation Delay (Max): | 130ns |
| Hysteresis: | -- |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | 8-PDIP |
| Base Part Number: | LM360 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. DESCRIPTION
The LM160/LM360N is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the μA760/μA760C, for which it is a pin-for-pin replacement. The device has been optimized for greater speed, input impedance and fan-out, and lower input offset voltage. Typically delay varies only 3 ns for overdrive variations of 5 mV to 400 mV. Complementary outputs having minimum skew are provided. Applications involve high speed analog to digital convertors and zero-crossing detectors in disk file systems.
2. FEATURES
1. Ensured high speed: 20 ns max
2. Tight delay matching on both outputs
3. Complementary TTL outputs
4. High input impedance
5. Low speed variation with overdrive variation
6. Fan-out of 4
7. Low input offset voltage
8. Series 74 TTL compatible
3. Pin configuration

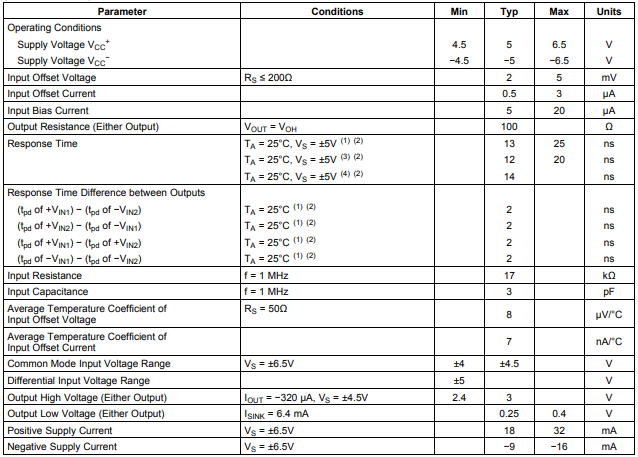

4. Electrical Characteristics
