1. Describe

The TPS26602PWPR device is a compact, feature-rich high- Voltage electronic fuse with full protection. Wide power supply input range of 4.2 to 60 V allows Controls many popular DC bus voltages. equipment can withstand and protect loads from positive and Negative supply voltages up to ±60 V. Integrated back Back-to-back FETs provide reverse current blocking Adapt the device to a system with an output voltage hold-up requirements during power outages and Power off state. Loads, Sources and Equipment protection offers many adjustable features including overcurrent, output slew rate and Overvoltage and undervoltage thresholds. built-in Powerful protection control block and high The voltage rating of the TPS26602PWPR helps simplify Surge protection system design. Shutdown pin provides external control for enable and disable the internal FET and place The device is in low current shutdown mode. For system Condition monitoring and downstream load control, device provides fault and accurate current monitoring output. MODE pin allows flexible configuration device between three current-limiting faults Responses . These devices are available in a 5mm × 4.4mm 16-pin package HTSSOP and 5mm x 4mm 24-pin VQFN package, rated from –40°C to +125°C temperature range.

2. Feature

    1. 4.2V to 60V operating voltage, 62V absolute maximum

    2. Integrated reverse input polarity protection down to –60 V

        – No additional components required

    3. Integrated back-to-back MOSFETs with a total RON of 150mΩ

    4. 0.1A to 2.23A adjustable current limit (±5% accuracy at 1A)

    5. Functional safety capabilities

        – Documentation available to aid in functional safety system design

    6. Load protection during surge (IEC 61000-4-5) with minimal external components

    7. IMON current indicator output (±8.5% accuracy)

    8. Low quiescent current, 300µA in operation and 20µA in shutdown

    9. Adjustable UVLO, OVP cutoff, output slew rate control

  10. Reverse current blocking

  11. Fixed 38V overvoltage clamp (TPS26602 only)

  12. Available in easy-to-use 16-pin HTSSOP and 24-pin VQFN packages

  13. Selectable current-limit fault response options (auto-retry, latch, circuit breaker modes)

  15. UL 2367 recognized

        – Document No. 169910

        – RILIM ≥ 5.36 kΩ (2.35-A max)

  16. UL60950 - safe during single point failure testing

        – Open/Short ILIM Detection

3. Application

    1. programmable logic controller

    2. Distributed Control System (DCS)

    3. Control and automation

    4. Redundant power ORing

    5. Industrial surge protection

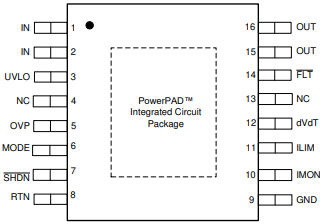

4. Pin configuration

5. Application Information

The TPS26602PWPR is an industrial electronic fuse typically used in hot swap and power rail protection applications. It operates from 4.2 V to 60 V with programmable current limit, overvoltage, undervoltage and reverse polarity protection. The device helps control inrush currents and provides robust reverse current protection and records wiring errors in systems such as PLCs, industrial PCs, control and automation, and sensors. The device also provides robust protection against multiple faults on the system rail. The Detail Designer section can be used to select component values for the device. Alternatively, complete designs can be generated using WEBENCH® software. WEBENCH® SOFTWARE Use iterative design procedures and access a comprehensive component database as components generate designs. In addition, the spreadsheet design tool TPS2660x Design Calculator is available in the web product folder.
