| Allicdata Part #: | BC847B-7FDITR-ND |
| Manufacturer Part#: |
BC847B-7-F |
| Price: | $ 5.69 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Diodes Incorporated |
| Short Description: | TRANS NPN 45V 0.1A SOT23-3Bipolar (BJT) Transistor... |
| More Detail: | N/A |
| DataSheet: |  BC847B-7-F Datasheet/PDF |
| Quantity: | 1000 |
| 1 +: | $ 5.68800 |
| 10 +: | $ 5.51736 |
| 100 +: | $ 5.40360 |
| 1000 +: | $ 5.28984 |
| 10000 +: | $ 5.11920 |
| Series: | BC847B |
| Packaging: | Tape & Reel (TR) |
| FET Type: | -- |
| Part Status: | Active |
| Technology: | Si |
| Transistor Type: | NPN |
| Drain to Source Voltage (Vdss): | -- |
| Current - Collector (Ic) (Max): | 100mA |
| Current - Continuous Drain (Id) @ 25°C: | -- |
| Voltage - Collector Emitter Breakdown (Max): | 45V |
| Drive Voltage (Max Rds On, Min Rds On): | -- |
| Vce Saturation (Max) @ Ib, Ic: | 600mV @ 5mA, 100mA |
| Rds On (Max) @ Id, Vgs: | -- |
| Current - Collector Cutoff (Max): | 15nA |
| Vgs(th) (Max) @ Id: | -- |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 2mA, 5V |
| Gate Charge (Qg) (Max) @ Vgs: | -- |
| Power - Max: | 300mW |
| Vgs (Max): | -- |
| Frequency - Transition: | 300MHz |
| Input Capacitance (Ciss) (Max) @ Vds: | -- |
| Operating Temperature: | -65°C ~ 150°C (TJ) |
| FET Feature: | -- |
| Mounting Type: | Surface Mount |
| Power Dissipation (Max): | -- |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
| Base Part Number: | BC847 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Features
1. Ideally Suited for Automatic Insertion
2. Complementary PNP Types: BC856 – BC858
3. For switching and AF Amplifier Applications
4. Totally Lead-Free & Fully RoHS compliant
5. Halogen and Antimony Free. "Green" Device
6. Qualified to AEC-Q101 Standards for High Reliability
7. PPAP capable
2. Mechanical Data
1. Case: SOT23
2. Case material: molded plastic, “Green” molding compound
- UL Flammability Classification Rating 94V-0
3. Moisture Sensitivity: Level 1 per J-STD-020
4. Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
5. Weight: 0.008 grams (Approximate)

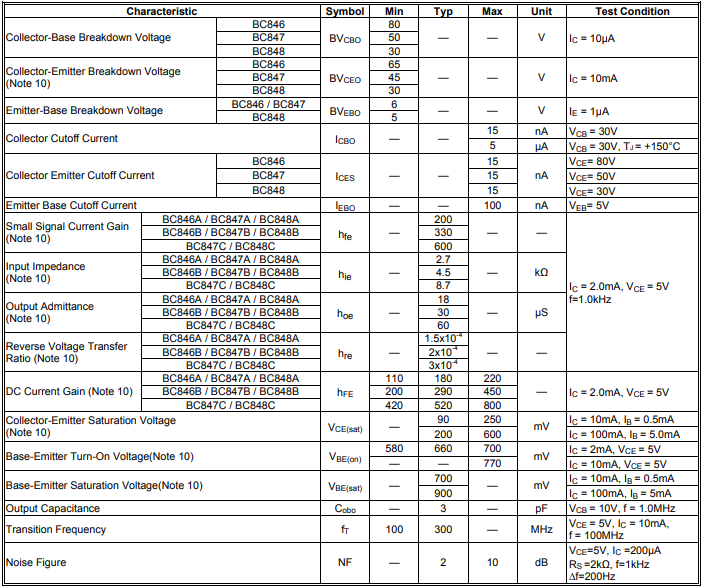

3. Electrical Characteristics

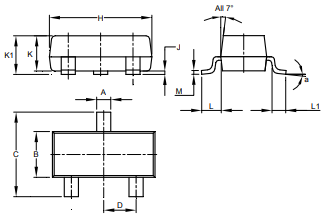

4. Package overview
